Part Number: MH89760B



MFG: MITEL





Description: The MH89760B is a complete T1 interface solution, meeting the Extended Super Frame (ESF), D3/D4 and SLC-96 formats. The...


Urgent Purchase

MH89760B General Description


The MH89760B is a complete T1 interface solution, meeting the Extended Super Frame (ESF), D3/D4 and SLC-96 formats. The MH89760B interfaces to the DS11.544 Mbit/sec digital trunk.

The MH89760B is a pin-compatible enhancement of the MH89760, permitting the removal of the tuneable inductor and inclusion of the external NAND gate used for generating RxD.

MH89760B Maximum Ratings


Parameter
Symbol
Min
Max
Units
1
 Supply Voltage with respect to VSS
VDD
-0.3
7
V
2
 Voltage on any pin other than supplies, OUTA or OUTB
VSS-0.3
VDD+0.3
V
3
 Voltage on OUTA or OUTB
15
V
4
 Current at any pin other than supplies, OUTA or OUTB
20
mA
5
 Current at OUTA or OUTB
200
mW
6
 Storage Temperature
TST
-20
85
°C

MH89760B Features

• Complete interface to a bidirectional T1 link
• D3/D4 or ESF framing and SLC-96 compatible
• Two frame elastic buffer with 32ms jitter buffer
• Insertion and detection of A, B, C, D bits Signalling freeze, optional debounce
• Selectable B8ZS, jammed bit (ZCS) or no zero code suppression
• Yellow and blue alarm signal capabilities
• Bipolar violation count, FT error count, CRC error count
• Frame and superframe sync. signals, Tx and Rx
• Per channel, overall, and remote loop around
• 8 kHz synchronization output
• Digital phase detector between T1 line and STBUS
• ST-BUS compatible
• Pin compatible with the MH89760
• Inductorless clock recovery
• Loss of Signal (LOS) indication
• Available in standard, narrow and surface mount formats

MH89760B Typical Application

• DS1/ESF digital trunk interfaces
• Computer to PBX interfaces (DMI and CPI)
• High speed computer to computer data links

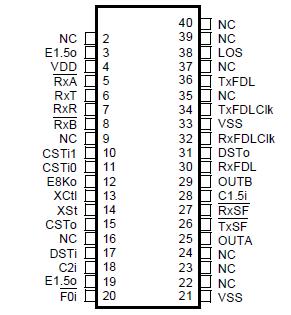

MH89760B Connection Diagram

MH89760B Connection Diagram

MH89760B datasheet

MH89760B
PDF/DataSheet Download

  • Datasheet: MH89760B
  • File Size: 866412 KB
  • Manufacturer: MITEL [Mitel Networks Corporation]
  • Click here to Download
