General Description
MIC5212 General Description
The MIC5212 is a dual linear voltage regulator with very-low dropout voltage (typically 10mV at light loads and 350mV at 500mA), very-low ground current (225A at 10mA output), and better than 1% initial accuracy.
Both regulator outputs can supply up to 500mA at the same time as long as each regulator's maximum junction temperature is not exceeded.
Key features include current limiting, overtemperature shutdown, and protection against reversed battery.
The MIC5212 is available in a fixed 3.3V/2.5V output voltage configuration. Other voltages are available; contact Micrel for details.
MIC5212 Maximum Ratings
Supply Input Voltage (VIN A or B) ................20V to +20V
Power Dissipation (PD) ............................ Internally Limited
Storage Temperature Range ..............60°C to +150°C
Lead Temperature (soldering, 5 sec.) .................... 260°C
Power Dissipation (PD) ............................ Internally Limited
Storage Temperature Range ..............60°C to +150°C
Lead Temperature (soldering, 5 sec.) .................... 260°C
MIC5212 Features
• Fused lead frame SOIC-8
• Up to 500mA per regulator output
• Low quiescent current
• Low dropout voltage
• Tight load and line regulation
• Low temperature coefficient
• Current and thermal limiting
• Reversed input polarity protection
• Up to 500mA per regulator output
• Low quiescent current
• Low dropout voltage
• Tight load and line regulation
• Low temperature coefficient
• Current and thermal limiting
• Reversed input polarity protection
MIC5212 Typical Application
• Hard disk drives
• CD R/W
• Bar code scanners
• SMPS post regulator/DC-to-DC modules
• High-efficiency linear power supplies
• CD R/W
• Bar code scanners
• SMPS post regulator/DC-to-DC modules
• High-efficiency linear power supplies

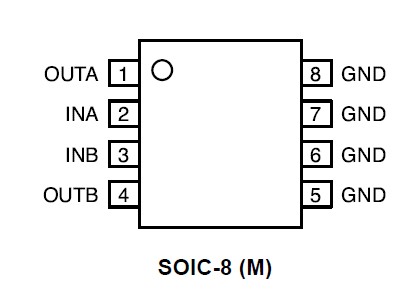

MIC5212 Connection Diagram
MIC5212-SJBM
