MJE3440

Configuration :
Transistor Polarity : NPN
Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT
Emitter- Base Voltage VEBO : 5 V
Packaging : Tube
DC Collector/Base Gain hfe Min : 50
Collector- Emitter Voltage VCEO Max : 250 V
Maximum DC Collector Current : 0.3 A
Maximum Operating Frequency : 15 MHz
Package / Case : SOT-32


Specifications

Symbo	Parameter	Value	Unit
VCBO	Collector-Base Voltage (IE =0)	350	V
VCEO	Collector-Emitter Voltage (IB =0)	250	V
VEBO	Emitter-Base Voltage (IC =0)	5	V
IC	Collector Current	0.3	A
IB	Base Current	0.15	A
Ptot	Total Power Dissipation at Tcase 25	15	W
Tstg	Storage Temperature	-65 to +150
Tj	Max. Operating Junction Temperature	150

Description

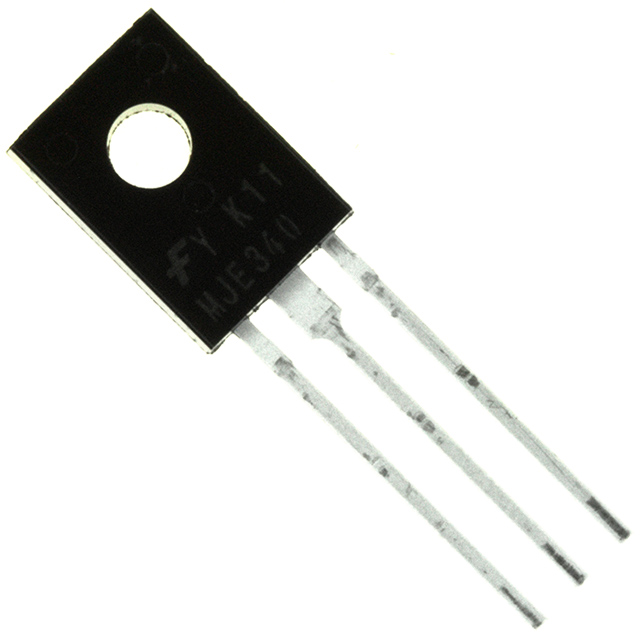

The MJE3440 is a NPN silicon epitaxial planar transistors in SOT-32 plastic package. It is designed for use in consumer and industrial line-operatedapplications.
