MJE703STU

Transistors Darlington PNP Si Transistor Epitaxial Darlington

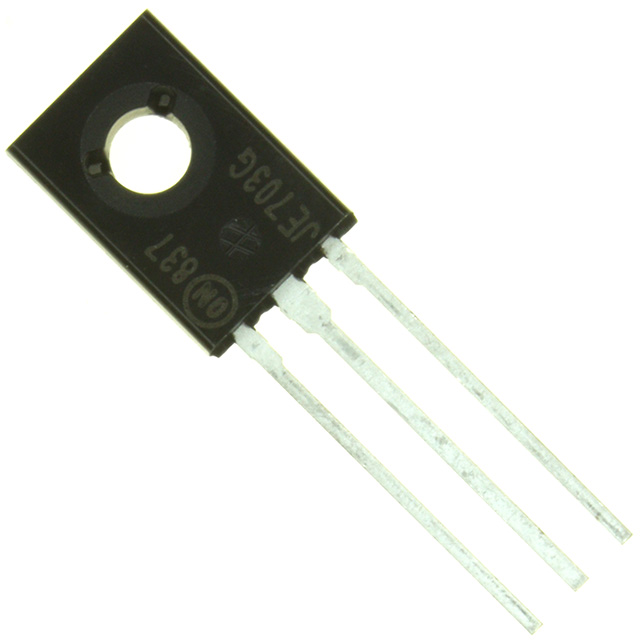

product image

MJE703STU Picture
See larger image
SeekIC No. : 00217489 Detail

MJE703STU: Transistors Darlington PNP Si Transistor Epitaxial Darlington

MJE703STU Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MJE703STU
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Configuration : Single Transistor Polarity : PNP
Collector- Emitter Voltage VCEO Max : 80 V Emitter- Base Voltage VEBO : 5 V
Collector- Base Voltage VCBO : 80 V Maximum DC Collector Current : 4 A
Maximum Collector Cut-off Current : 100 uA Maximum Operating Temperature : + 150 C
Mounting Style : Through Hole Package / Case : TO-126
Packaging : Tube

Description

Power Dissipation :
Transistor Polarity : PNP
Collector- Emitter Voltage VCEO Max : 80 V
Collector- Base Voltage VCBO : 80 V
Mounting Style : Through Hole
Packaging : Tube
Configuration : Single
Emitter- Base Voltage VEBO : 5 V
Maximum DC Collector Current : 4 A
Maximum Operating Temperature : + 150 C
Maximum Collector Cut-off Current : 100 uA
Package / Case : TO-126


Parameters:

Technical/Catalog InformationMJE703STU
VendorFairchild Semiconductor
CategoryDiscrete Semiconductor Products
Transistor TypePNP - Darlington
Voltage - Collector Emitter Breakdown (Max)80V
Current - Collector (Ic) (Max)4A
Power - Max40W
DC Current Gain (hFE) (Min) @ Ic, Vce750 @ 1.5A, 3V
Vce Saturation (Max) @ Ib, Ic2.8V @ 30mA, 1.5A
Frequency - Transition-
Current - Collector Cutoff (Max)100A
Mounting TypeThrough Hole
Package / CaseTO-126
PackagingTube
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MJE703STU
MJE703STU
