Product Details

Description



Features:

• Single chip controller with internal microcontroller (min. 4 cycles/instruction execution)
• Operating voltage: 3.3 V, Interface voltage: 3.3 V/5 V
• Internal 256B RAM for card information structure (CIS) storage
• Conforms to PC card standard - PC card ATA specification
• Auto-sleep mode support
• True IDE Mode support
• ECC system by BCH code (3-bit random error correction is possible for user data and ECC data)
• Substitute control function (defect management function)
• Debug mode support
• External buffer (128KB SRAM) control is possible
• High-speed operation via dual port bus control
• Low power consumption due to single chip controller
• Control of multiple NAND flash memories (64MB to 512MB) is possible
   - Chip stand-alone : 16 pcs max.
   - Chip and external decoder circuit : 64 pcs max.
• 144-pin LQFP package (LQFP144-P-2020-0.50-K)


Pinout

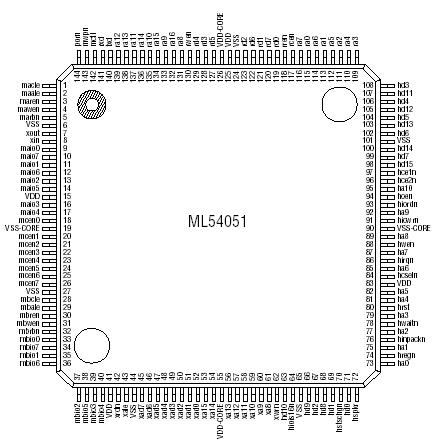

Connection Diagram


Specifications

Parameter Symbo l Condition Rating Unit
Power Supply Voltage VDD Tj = 25°C
The standard is
VSS = 0 V		 0.3 to +4.6 V
Input Voltage Normal Buffer VI 0.3 to VDD + 0.3 V
5 V Tolerant Buffer VI 0.3 to +6.0 V
Output Voltage Normal Buffer VO 0.3 to + 0.3 V
5 V Tolerant Buffer VO 0.3 to +6.0 V
Input Current Normal Buffer II 10 to +10 mA
5 V Tolerant Buffer II 6 to +6 mA
Storage Temperature Tstg 65 to +150 °C
