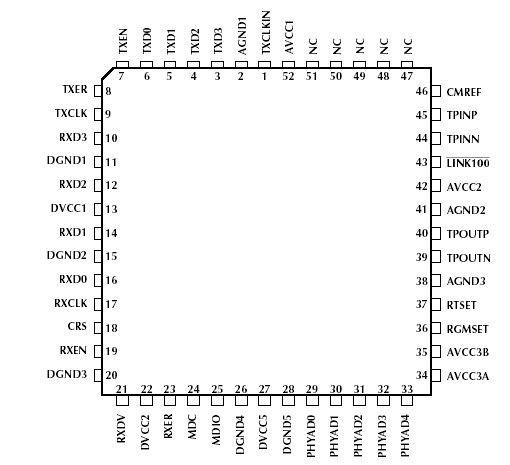

MFG:ML Package Cooled:PLCC52 D/C:07/08+
MFG: ML
Package Cooled: PLCC52
D/C: 07/08+
Description: The ML6697 implements the complete physical layer ofthe Fast Ethernet 100BASE-TX standard. The ML6697o...
The ML6697 implements the complete physical layer ofthe Fast Ethernet 100BASE-TX standard. The ML6697offers a single-chip per-port solution for MII-basedrepeater applications. The ML6697 interfaces to thecontroller through the Media Independent Interface (MII).
The ML6697 functionality includes 4B/5B encoding/decoding, Stream Cipher scrambling/descrambling,125MHz clock recovery/generation, receive adaptiveequalization, baseline wander correction, and MLT-3transmitter.
VCC Supply Voltage Range .............. GND 0.3V to 6V
Input Voltage Range
Digital Inputs ...................... GND 0.3V to VCC +0.3V
TPINP, TPINN, .................... GND 0.3V to VCC +0.3V
Output Current
TPOUTP, TPOUTN ................................................ 60mA
All other outputs ................................................ 10mA
Junction Temperature.......................................... 150
Storage Temperature ........................65 to +150
Lead Temperature (Soldering, 10 sec) ................260
Thermal Resistance (qJA)
PLCC .................................................................40/W
TQFP .................................................................52/W
ML6697
PDF/DataSheet Download
The ML6696 implements the complete physical layer of the Fast Ethernet 100BASE-X standard for fiber media. The device provides the MII (Media Independent Interface) for interface to upper-layer silicon. The ML6696 integrates the data quantizer and the LED dr...
The ML6695 implements the physical layer of the FastEthernet 100BASE-X standard for fiber media. The device provides the 5-bit (or symbol) interface for interface toupper-layer silicon. The ML6695 integrates the dataquantizer and the LED driver, allowing the...
The ML6694 is a high-speed physical layer transceiver that provides a 5-bit (or symbol) interface to unshielded twisted pair cable media. The ML6694 is well suited for repeater applications using repeater controllers with the 5-bit interface. The ML6694 may ...
The ML6692 implements the complete physical layer of the Fast Ethernet 100BASE-TX standard. The ML6692 interfaces to the controller through the standard-compliant Media Independent Interface (MII). The ML6692 functionality includes auto-negotiation, 4B/5B en...
The ML6691* implements the upper portion of the physicallayer for the Fast Ethernet 100BASE-T standard. Functionscontained in the ML6691* include a 4B/5B encoder/decoder, a Stream Cipher scrambler/descrambler, andcollision detect. Additional functions of the...
The ML6680 is a single-chip conversion between TokenRing ISO/IEC8802-5 copper-based media and Token Ring ISO/IEC8802-5 fiber-based media. The ML6680 fiber-opticinterface contains a data quantizer, circuitry for fiber optickey signal generation and recognitio...
