General Description
ML6698* General Description
The ML6698 is a high-speed physical layer transceiverthat provides a 5-bit (or symbol) interface to unshieldedtwisted pair cable media. The ML6698 is well suited foradapter card applications using the DEC 21143, theMacronix MX98713, or equivalent Media AccessControllers (MACs). The ML6698 may be used in other100BASE-TX applications requiring the 5-bit interface aswell as FDDI-over-copper applications.
The ML6698 integrates 125MHz clock recovery/generation, receive adaptive equalization, baselinewander correction and MLT-3/10BASE-T transmitter.
ML6698* Maximum Ratings
VCCSupply Voltage Range .................GND 0.3V to 6V
Input Voltage Range
Digital Inputs ....................... GND 0.3V to VCC + 0.3V
TPINP, TPINN, 10BTTXINP,
10BTTXINN .......................... GND 0.3V to VCC + 0.3V
Output Current
TPOUTP, TPOUTN ................................................. 60mA
All other outputs .................................................. 10mA
Junction Temperature ...........................................150
Storage Temperature ............................65 to 150
Lead Temperature (Soldering, 10 sec) ..................... 260
Input Voltage Range
Digital Inputs ....................... GND 0.3V to VCC + 0.3V
TPINP, TPINN, 10BTTXINP,
10BTTXINN .......................... GND 0.3V to VCC + 0.3V
Output Current
TPOUTP, TPOUTN ................................................. 60mA
All other outputs .................................................. 10mA
Junction Temperature ...........................................150
Storage Temperature ............................65 to 150
Lead Temperature (Soldering, 10 sec) ..................... 260
ML6698* Features
5-bit (or symbol) parallel interface
Compliant to IEEE 802.3u 100BASE-TX standard
Compliant to ANSI X3T12 TP-PMD (FDDI) standard
Single-jack 10BASE-T/100BASE-TX solution when usedwith external 10Mbps PHY
125MHz receive clock recovery/generation
Baseline wander correction
Adaptive equalization and MLT-3 encoding/decoding
Supports full-duplex operation

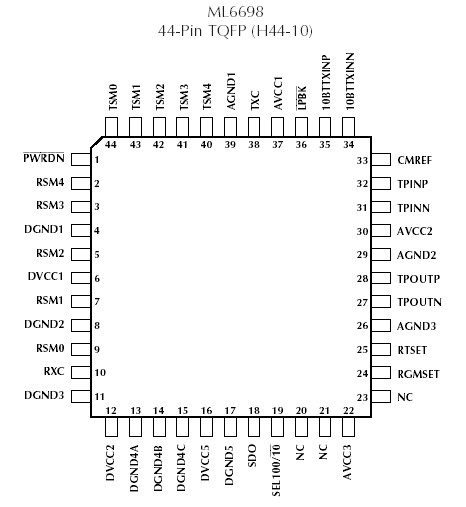

ML6698* Connection Diagram
