ML7020

Features: • Single 5 V power supply operation (VDD: 4.5 to 5.5 V)• Low power consumption: During operation: 5 mA typ. During the power down mode: 7 A typ.• Built-in 1200 bps modem conforming to ITU-T V.23 recommendations• Built-in DTMF signal generator with a switchable 6-d...

product image

ML7020 Picture
See larger image
SeekIC No. : 004422234 Detail

ML7020: Features: • Single 5 V power supply operation (VDD: 4.5 to 5.5 V)• Low power consumption: During operation: 5 mA typ. During the power down mode: 7 A typ.• Built-in 1200 bps modem ...

ML7020 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ML7020
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single 5 V power supply operation (VDD: 4.5 to 5.5 V)
• Low power consumption: During operation: 5 mA typ. During the power down mode: 7 A typ.
• Built-in 1200 bps modem conforming to ITU-T V.23 recommendations
• Built-in DTMF signal generator with a switchable 6-dB attenuator
• Built-in DTMF detector (the input can be selected from either the line or the terminal)
• Built-in call progress tone generator. The output frequency can be selected from 400 Hz and 800 Hz.
• Built-in call progress tone detector
• Three analog input systems (switchable)
• Analog output for the line is of the differential type and can drive a 600 line transformer.
• Analog output for the terminal is of the single-ended type and can drive a 1.2 k load.
• Built-in switch for selecting the 600 termination
• 4-Bit processor interface
• Built-in oscillator circuit for a 3.579545 MHz crystal
• Package: 32-Pin plastic SSOP (SSOP32-P-430-1.00-K) (Product name: ML7020MB)


Pinout

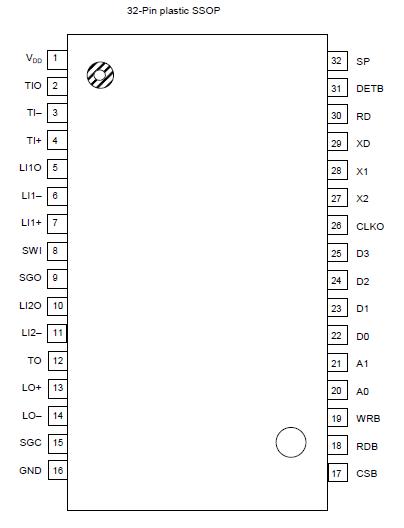

Connection Diagram


Specifications

Parameter
Symbol
Condition
Rating
Unit
Power supply voltage
VDD
-
0.3 to +7.0
V
Permissible power
dissipation
PD
-
to 130
mW
Output short circuit current
ISHT
Shorted to VDD or ground.
to 60
mA
Analog input voltage
VAIN
-
0.3 to VDD +-0.3
V
Digital input voltage
VDIN
-
0.3 to VDD+-0.3
V
Storage temperature range
TSTG
-
55 to +150



Description

The ML7020 is a 1200 bps modem LSI developed for remote control systems. The functions incorporated are those of a 1200 bps FSK modem conforming to ITU-T Recommendations V.23, DTMF signal generation and detection, call progress tone (CPT) generation and detection. Each functional block can be controlled via a 4-bit processor interface.
