MM1495X
-
Suppliers
DataSheet
General Description
MM1495X Maximum Ratings
|
Item |
Symbol |
Ratings |
Units |
|
Storage temparature |
TSTG |
-40~+25 |
|
|
Operating temparature |
TOPR |
-20~+75 |
|
|
Supply voltage |
VCC max. |
12 |
V |
|
Allowable loss |
Pd |
1100 |
mW |
MM1495X Features
· Serial control by I2C BUS.
· 5 - inputs, 2 - outputs (2 of the 5 input lines can be used for either composite or Y)
· Built-in sync separation circuit
· Built-in Y/C mix circuit
· Video and audio switches can be controlled independently.
· 6dB amp built in to video and audio systems.
· Output voltage gain can be varied by mounting an external resistor on the audio input pin.
· Slave address can be changed: 90H or 92H
· Built-in 3-value identification function
MM1495X Typical Application
· TV
· Other video equipment

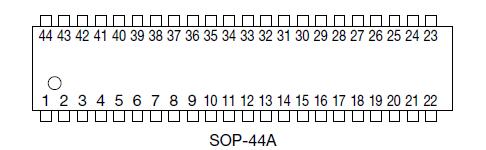

MM1495X Connection Diagram
MM1495X
PDF/DataSheet Download
- Datasheet: MM1495X
- File Size: 479648 KB
- Manufacturer: Mitsumi
- Click here to Download
