Purchase MM58242, In-stock MM58242 From SeekIC.
MFG:NS Package Cooled:PLCC
Part Number: MM58242
MFG: NS
Package Cooled: PLCC
Description: The MM58242 is a monolithic MOS integrated circuit utilizing CMOS metal gate low threshold P and N-cha...
- Table of contents:
MM58242
-
Suppliers
DataSheet
General Description
MM58242 General Description
The MM58242 is a monolithic MOS integrated circuit utilizing CMOS metal gate low threshold P and N-channel devices.
It is available both in 28-pin molded dual-in-line packages or as dice. The MM58242 is particularly suited for driving high voltage (60V max) vacuum fluorescent (VF) displays (e.g., a 20-digit alphanumeric or dot matrix display).
MM58242 Maximum Ratings
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales
Office/Distributors for availability and specifications.
Voltage at Any Input Pin VDD + 0.3V to VSS -0.3V
Voltage at Any Display Pin VDD to VDD -62.5V
VDD +lVDISl 62.5V
Storage Temperature -65 to +150
Power Dissipation at+25
Molded DIP Package, Board Mount 2.03W*
Molded DIP Package, Socket Mount 1.83W**
Junction Temperature 130
Lead Temperature (Soldering, 10 sec.) 260
*Molded DIP Package, Board Mount,JA = 52/W,
Derate 19.2 mW/ above +25.
**Molded DIP Package, Socket Mount, JA = 58/W,
Derate 17.2 mW/ above +25.
please contact the National Semiconductor Sales
Office/Distributors for availability and specifications.
Voltage at Any Input Pin VDD + 0.3V to VSS -0.3V
Voltage at Any Display Pin VDD to VDD -62.5V
VDD +lVDISl 62.5V
Storage Temperature -65 to +150
Power Dissipation at+25
Molded DIP Package, Board Mount 2.03W*
Molded DIP Package, Socket Mount 1.83W**
Junction Temperature 130
Lead Temperature (Soldering, 10 sec.) 260
*Molded DIP Package, Board Mount,JA = 52/W,
Derate 19.2 mW/ above +25.
**Molded DIP Package, Socket Mount, JA = 58/W,
Derate 17.2 mW/ above +25.
MM58242 Features
· Direct interface to high voltage display
· Serial data input
· No external resistors required
· Wide display power supply operation
· LSTTL compatible inputs
· Software compatible with NS display driver family
· Compatible with alphanumeric or dot matrix displays
· Display blanking control input
· Simple to cascade
· Serial data input
· No external resistors required
· Wide display power supply operation
· LSTTL compatible inputs
· Software compatible with NS display driver family
· Compatible with alphanumeric or dot matrix displays
· Display blanking control input
· Simple to cascade
MM58242 Typical Application
· COPSTM or microprocessor-driven displays
· Instrumentation readouts
· Industrial control indicator
· Digital clock, thermostat, counter, voltmeter
· Word processor text displays
· Automotive dashboards
· Instrumentation readouts
· Industrial control indicator
· Digital clock, thermostat, counter, voltmeter
· Word processor text displays
· Automotive dashboards

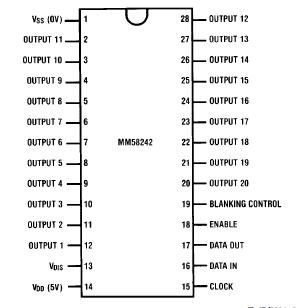

MM58242 Connection Diagram
MM58242
PDF/DataSheet Download
- Datasheet: MM58242
- File Size: 141211 KB
- Manufacturer: NSC [National Semiconductor]
- Click here to Download
