MFG:FSC Package Cooled:DIP, SOIC D/C:08+
MFG: FSC
Package Cooled: DIP, SOIC
D/C: 08+
Description: The MM74C14 Hex Schmitt Trigger is a monolithic complementary MOS (CMOS) integrated circuit constructe...
The MM74C14 Hex Schmitt Trigger is a monolithic complementary MOS (CMOS) integrated circuit constructed with N- and P-channel enhancement transistors. The positive and negative going threshold voltages VT+ and VT-, show low variation with respect to temperature (typ. 0.0005V/°C at VCC = 10V), and hysteresis, VT+ - VT- ³ 0.2 VCC is guaranteed.

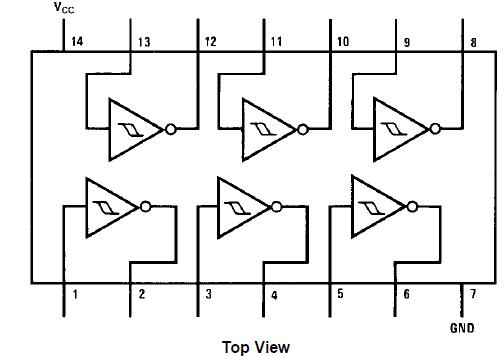

| Voltage at Any Pin |
-0.3Vto VCC + 0.3V |
| Operating Temperature Range |
-40 to +85 |
| Storage Temperature Range |
-65 to +150 |
| Power Dissipation | |
| Dual-In-Line |
700 mW |
| Small Outline |
500mW |
| Operating VCC Range |
3.0V to 15V |
| Absolute Maximum VCC |
18V |
| Lead Temperature | |
| (Soldering, 10 seconds) |
260 |
Note 1: "Absolute Maximum Ratings" are those values beyond which the safety of the device cannot be guaranteed. Except for "Operating Temperature Range" they are not meant to imply that the devices should be operated at these limits. The Electrical Characteristics tables provide conditions for actual device operation.
· Wide supply voltage range: 3.0V to 15V
· High noise immunity: 0.70 VCC (typ.)
· Low power: TTL compatibility: 0.4 VCC (typ.) 0.2 VCC guaranteed
· Hysteresis: 0.4 VCC (typ.): 0.2 VCC guaranteed
MM74C14
PDF/DataSheet Download
