Part Number: MM74C914
MFG: FSC
D/C: 200
Description: The MM74C914 is a monolithic CMOS Hex Schmitt trigger with special input protection scheme. This schem...
- Table of contents:
MM74C914
-
Suppliers
DataSheet
General Description
MM74C914 General Description
The MM74C914 is a monolithic CMOS Hex Schmitt trigger with special input protection scheme. This scheme allows the input voltage levels to exceed VCC or ground by at least 10V (VCC -25V to GND + 25V), and is valuable for applications involving voltage level shifting or mismatched power supplies.
The positive and negative-going threshold voltages, VT+ and VT-, show low variation with respect to temperature (typ 0.0005V/°C at VCC = 10V). And the hysteresis, VT+ - VT- ³ 0.2 VCC is guaranteed.
MM74C914 Maximum Ratings
| Voltage at any Input Pin |
VCC - 25V to GND + 25V |
| Voltage at any other Pin |
-0.3Vto VCC + 0.3V |
| Operating Temperature Range (TA) |
-40 to +85 |
| Storage Temperature Range (TS) |
-65 to +150 |
| Power Dissipation | |
| Dual-In-Line |
700 mW |
| Small Outline |
500mW |
| Operating VCC Range |
3V to 15V |
| Absolute Maximum (VCC) |
18V |
| Lead Temperature (TL) | |
| (Soldering, 10 seconds) |
300 |
MM74C914 Features
·Hysteresis: 0.45 VCC (typ.) 0.2 VCCguaranteed
· Special input protection: Extended Input Voltage Range
· Wide supply voltage range: 3V to 15V
· High noise immunity: 0.7 VCC (typ.)
· Low power TTL compatibility: Fan out of 2 driving 74L

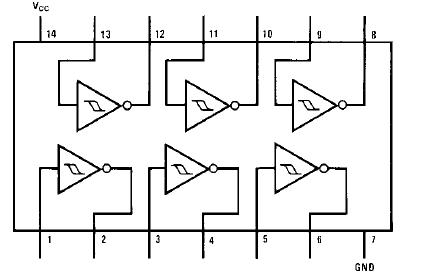

MM74C914 Connection Diagram
MM74C914
PDF/DataSheet Download
- Datasheet: MM74C914
- File Size: 62178 KB
- Manufacturer: FAIRCHILD [Fairchild Semiconductor]
- Click here to Download
