MN662747RPH General Description


The MN662747RPH is a CD signal processing LSI that, on a single chip, combines optics servos for the CD player (focus, tracking, and traverse servos), digital signal processing (EFM demodulation and error correction), digital servo processing for the spindle motor, digital filter, and D/A converter, so thus covers all signal processing functions from the head's RF amplifier onward.

MN662747RPH Features

(Optics servo)
`Focus, tracking, and traverse servos
`Automatic adjustment functions for FO/TR gain, FO/TR offset, and FO/TR balance
`Built-in D/A converter for drive voltage output
`Built-in dropout countermeasures
`Anti-shock functions
`Built-in track cross counter
`Traverse speed detection function
(Digital Signal Processing)
`Built-in DSL and PLL
`Frame synchronization detection, holding, and insertion
`Subcode data processing
   Subcode Q data CRC check
   Built-in subcode Q data register
`CIRC error detection and correction
   C1 decoder: duplex error correction
   C2 decoder: triplex error correction
   Built-in 16-K bits of RAM for use in deinterleaving
`Audio data interpolation
   Averaging or retention of previous values
   Digital attenuation (12 dB)
`Audio data peak level detection function
`Digital audio interface (EIAJ format)
`Audio data serial interface for input and output
(Spindle Motor Servo)
`CLV digital servo
`Switchable servo gain
(Audio circuits)
`Digital filter using 8-fold oversampling
`Built-in D/A converter (1-bit D/A converter)
`Built-in differential operational amplifier (secondarylow pass filter)
(Other)
`Built-in playback pitch control function (normal speed only) (±13%)
`Support for quadruple-speed playback (digital servo and signal processing block only)
`Built-in support for jitter-free disc rotation synchronization playback
`Oscillator shutdown mode
`Power management mode
`Operating voltage 4.5 to 5.5 V

MN662747RPH Typical Application

CD players

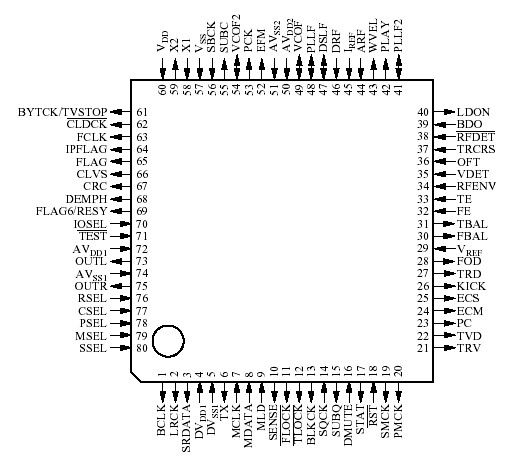

MN662747RPH Connection Diagram
