General Description
MN673274 General Description
The MN673274 is designed for surveillance and PC input cameras. In addition to the basic functions of luminance signal and chrominance signal processing, it also integrates microcontroller functions (ALC, AWB, and AGC) and SSG, CG, and I2C-bus circuits on a single chip.
MN673274 Features
· Input: Analog signal (A/D converter input)
· Output: Digital output
·YUV signal: 8 bits
·Analog outputs
·Y signal
·C signal
·Composite video output
·RGB outputs
· Operating supply voltage: 3.3 V ± 0.3 V
· Operating frequency: 9.5 MHz to 28.7 MHz
· Main functions
• 10-bit A/D converter
• 10-bit D/A converter
• 2-channel 8-bit D/A converter
• Support for analog AGC (NN2038, NN2039)
• CG and SSG functions
• 510H and 768H (Supports NTSC and PAL )
• Supports progressive scan readout CCDs with complementary color filters for VGA
• Supports black-and-white CCD signal processing
• CCD white defect/black defect correction circuit
• Maximum digital AGC gain: 24 dB
• Left/right reversing function
• Variable gamma correction (g = 0.3 to 1)
• ZV port conforming mode, BT656 conforming mode
• External synchronization support: HD/VD, VD2, Sync., LL mode
• On-chip I2C-bus circuit
• ELC/AGC (Also supports external AGC)
• Two-mode white balance (manual/ATW) with ATW lock function
• Automatic OB correction function
· Output: Digital output
·YUV signal: 8 bits
·Analog outputs
·Y signal
·C signal
·Composite video output
·RGB outputs
· Operating supply voltage: 3.3 V ± 0.3 V
· Operating frequency: 9.5 MHz to 28.7 MHz
· Main functions
• 10-bit A/D converter
• 10-bit D/A converter
• 2-channel 8-bit D/A converter
• Support for analog AGC (NN2038, NN2039)
• CG and SSG functions
• 510H and 768H (Supports NTSC and PAL )
• Supports progressive scan readout CCDs with complementary color filters for VGA
• Supports black-and-white CCD signal processing
• CCD white defect/black defect correction circuit
• Maximum digital AGC gain: 24 dB
• Left/right reversing function
• Variable gamma correction (g = 0.3 to 1)
• ZV port conforming mode, BT656 conforming mode
• External synchronization support: HD/VD, VD2, Sync., LL mode
• On-chip I2C-bus circuit
• ELC/AGC (Also supports external AGC)
• Two-mode white balance (manual/ATW) with ATW lock function
• Automatic OB correction function
MN673274 Typical Application
· Surveillance cameras, PC cameras

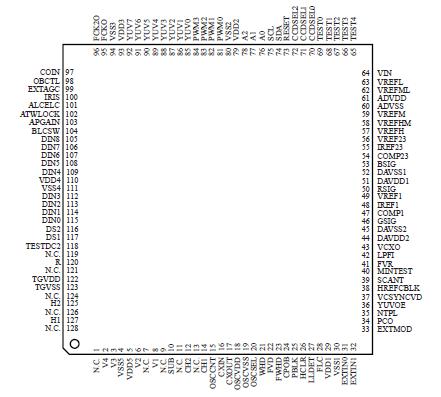

MN673274 Connection Diagram
MN673274
PDF/DataSheet Download
- Datasheet: MN673274
- File Size: 94848 KB
- Manufacturer: PANASONIC [Panasonic Semiconductor]
- Click here to Download
