MN673273

Features: • Input: Analog signal (A/D converter input)• Outputs: Digital outputs-8-bit Y signal-8-bit C signal-Analog outputs-Y signal-C signal• Operating supply voltage: 3.3 V ±0.3 V• Operating clock frequency: 9.5 to 20 MHz• Main functions- 10-bit A/D converter- Two...

product image

MN673273 Picture
See larger image
SeekIC No. : 004424687 Detail

MN673273: Features: • Input: Analog signal (A/D converter input)• Outputs: Digital outputs-8-bit Y signal-8-bit C signal-Analog outputs-Y signal-C signal• Operating supply voltage: 3.3 V ±0....

MN673273 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MN673273
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Input: Analog signal (A/D converter input)
• Outputs: Digital outputs
-8-bit Y signal
-8-bit C signal
-Analog outputs
-Y signal
-C signal
• Operating supply voltage: 3.3 V ±0.3 V
• Operating clock frequency: 9.5 to 20 MHz
• Main functions
- 10-bit A/D converter
- Two-channel 8-bit D/A converter
- Analog Y and C outputs
- Digital Y and C outputs
- ALC (supports both electronic and mechanical iris), AWB, AGC. Can be used with either a hardware control system or a microcontroller based control system.
- 50 Hz fluorescent lamp flicker correction
- Supports analog AGC (AN2108)
- On-chip CG and SSG
- Supports both 510 and 360 horizontal lines (However, 360 horizontal line output is only provided for the digital outputs.)
- Supports pseudo-VGA (digital rate conversion)
- Supports both NTSC and PAL


Application

• PC cameras, multimedia cameras


Pinout

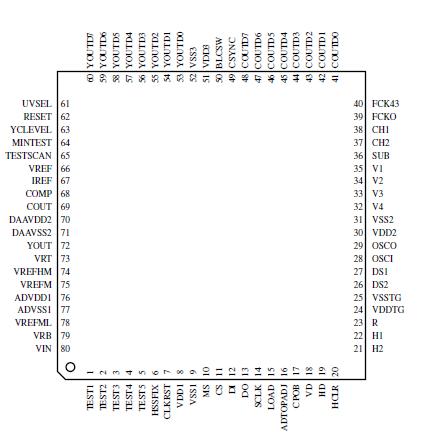

Connection Diagram


Description

The MN673273 is a signal processing LSI for digital cameras inputting to computer. In addition to the basic functions of luminance signal and chrominance signal processing, the MN673273 integrates microcontroller functions (ALC, AWB, and AGC), SSG, and CG on a single chip.
