MN838850

Features: · Includes a built-in D/A converter and accepts 8-bit digital input data for 16.7-million color display.· Output dynamic range: 14.6 V P-P (when AVDD = 15 V)· Supports both dot inversion drive and source inversion drive schemes.· Number of drive outputs: 384· Input data bus: acquires two...

product image

MN838850 Picture
See larger image
SeekIC No. : 004424702 Detail

MN838850: Features: · Includes a built-in D/A converter and accepts 8-bit digital input data for 16.7-million color display.· Output dynamic range: 14.6 V P-P (when AVDD = 15 V)· Supports both dot inversion d...

MN838850 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MN838850
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Includes a built-in D/A converter and accepts 8-bit digital input data for 16.7-million color display.
· Output dynamic range: 14.6 V P-P (when AVDD = 15 V)
· Supports both dot inversion drive and source inversion drive schemes.
· Number of drive outputs: 384
· Input data bus: acquires two pixels at the same time
· Supports control of data inversion at each clock cycle.
· Supports g correction.
· Adopts a drive scheme that does not require precharging.
· Allows serial cascade connection.
· The clock is automatically stopped after the acquisition of a fixed amount of data.
· The shift register shift direction can be set to be either left-to-right or right-to-left.
· Digital circuit block features low-voltage operation: 2.7 to 3.6 V
· Maximum operating clock frequency: 50 MHz (3.1 to 3.6 V), 40 MHz (2.7 to 3.6 V)


Application

· TFT LCD panels


Pinout

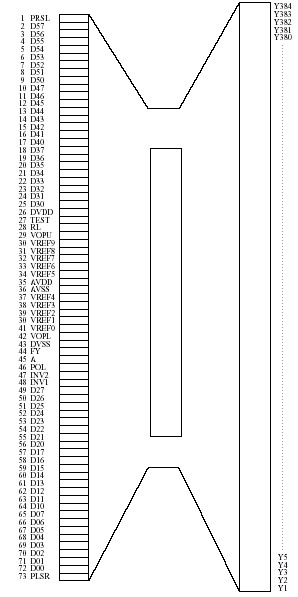

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Digital power supply voltage DVDD - 0.3 to 7.0 V
Analog power supply voltage AVDD - 0.3 to 17 V
Digital input voltage VI1 - 0.3 to DVDD +0.3 V
Analog input voltage VI2 - 0.3 to AVDD +0.3 V
Digital output voltage VO1 - 0.3 to DVDD +0.3 V
Analog output voltage VO2 - 0.3 to AVDD +0.3 V
Operating temperature Topr - 20 to +75 °C
Storage temperature Tstg - 40 to +110 °C

Note) The absolute maximum ratings are limiting values under which the device will not be destroyed. Operation is not guaranteed within these ranges.


Description

The MN838850 converts digital display data from a personal computer or an engineering workstation to analog signal voltages to allow those signals to be displayed on a color TFT LCD panel.
