Part Number: MN89302



MFG: PANASONI

Package Cooled: QFP

D/C: 08+

Description: The MN89302 is an LCD/CRT display controller with IBM™ VGA-compatible registers. It features all...


Urgent Purchase

MN89302 General Description


The MN89302 is an LCD/CRT display controller with IBM™ VGA-compatible registers. It features all the necessary interfaces for a compact display system: ISA bus interface, local bus interface, DRAM interface, and LCD panel interface. The built-in graphics acceleration functions include support for bit-block transfers (BITBLT) and hardware cursor.

MN89302 Maximum Ratings

Parameter Symbol Rating Unit
Power supply voltage VDD 0.3 to +7.0 V
Input pin voltage VI 0.3 to VDD +0.3 V
Output pin voltage VO 0.3 to VDD +0.3 V
Power dissipation PD 1000 mW
Operating ambient temperature Topr 0 to +70 °C
Storage temperature Tstg 55 to +150 °C

MN89302 Features

·Monochrome STN LCD panel support
   Maximum display size: 800 × 600
   Support for single and dual panels
   32-monochrome gradation
·Color STN LCD panel support
   Maximum display size: 800 × 600
   Support for single and dual panels
   32-gradation for each color (RGB)
·Color TFT LCD panel support
   Maximum display size: 800 × 600
   5-bit output for red and blue; 6-bit output for green
·Maximum number of colors in concurrent display
   320 × 240: 64k (TFT, STN)
   640 × 480: 256/260K palette (TFT, STN)
   800 × 600: 256/260K palette (TFT, STN)

MN89302 Typical Application

·Point-of-sale terminals, Factory automation terminals, word processors, and other terminals
·Built-in graphics acceleration functions
    • Bit-block transfers (BITBLT) to and from host video memory and within video memory
    • Hardware cursor (16 × 16 or 32 × 32)
·Built-in automatic display centering
·Built-in gradation control table (rewritable) for
·optimizing gradation to match panel
·DRAM interface with 16-bit bus
    • Support for 2CAS/2WE mode
    • Refresh control
·Host interfaces
    • ISA bus (16-bit)
    • i386/i486 local bus (16-bit)

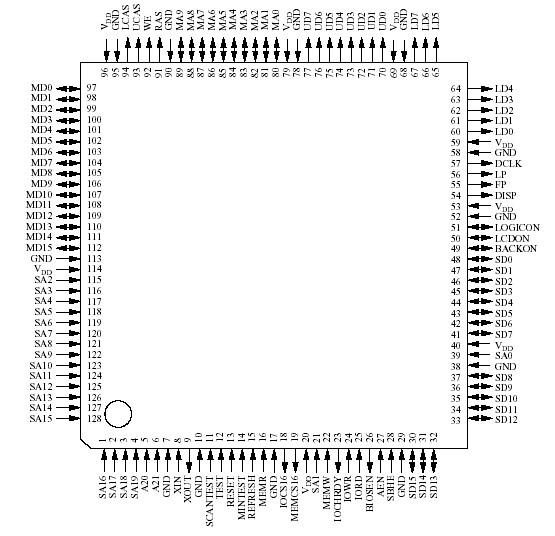

MN89302 Connection Diagram

MN89302 Connection Diagram
