Purchase MN89303A, In-stock MN89303A From SeekIC.
MFG:FUJITSU Package Cooled:QFP
Part Number: MN89303A
MFG: FUJITSU
Package Cooled: QFP
Description: The MN89303A is an LCD/CRT display controller with IBM™ VGA-compatible registers. It features al...
- Table of contents:
MN89303A
-
Suppliers
DataSheet
General Description
MN89303A General Description
The MN89303A is an LCD/CRT display controller with IBM™ VGA-compatible registers. It features all the necessary interfaces for a compact display system: ISA bus interface, local bus interface, DRAM interface, and LCD panel interface. The built-in graphics acceleration functions include support for hardware cursor.
MN89303A Maximum Ratings
| Parameter | Symbol | Rating | Unit |
| Power supply voltage | VDD | 0.3 to +7.0 | V |
| Input pin voltage | VI | 0.3 to VDD +0.3 | V |
| Output pin voltage | VO | 0.3 to VDD +0.3 | V |
| Power dissipation | PD | 1000 | mW |
| Operating ambient temperature | Topr | 0 to +70 | °C |
| Storage temperature | Tstg | 55 to +150 | °C |
MN89303A Features
·Monochrome STN LCD panel support Maximum display size: 800 × 600 Support for single and dual panels 16-monochrome gradation
·Color STN LCD panel support Maximum display size: 800 × 600 Support for single and dual panels 16-gradation for each color (RGB)
·Color TFT LCD panel support Maximum display size: 800 × 600 4-bit output for each color (RGB)
·Maximum number of colors in concurrent display
640 × 480: 256/4096 palette (TFT, STN)
800 × 600: 256/4096 palette (TFT, STN)
·Color STN LCD panel support Maximum display size: 800 × 600 Support for single and dual panels 16-gradation for each color (RGB)
·Color TFT LCD panel support Maximum display size: 800 × 600 4-bit output for each color (RGB)
·Maximum number of colors in concurrent display
640 × 480: 256/4096 palette (TFT, STN)
800 × 600: 256/4096 palette (TFT, STN)
MN89303A Typical Application
·Point-of-sale terminals, Factory automation terminals, word processors, and other terminals
·Built-in graphics acceleration functions
• Hardware cursor (16 × 16 or 32 × 32)
·Built-in automatic display centering
·Built-in gradation control table (rewritable) for optimizing gradation to match panel
·DRAM interface with 16-bit bus
• Choice of DRAM access timing to match system performance (EDO/normal)
• Support for 2CAS/2WE mode
• Refresh control
·Host interfaces
• ISA bus (16-bit)
• i386/i486 local bus (16-bit)
·Built-in graphics acceleration functions
• Hardware cursor (16 × 16 or 32 × 32)
·Built-in automatic display centering
·Built-in gradation control table (rewritable) for optimizing gradation to match panel
·DRAM interface with 16-bit bus
• Choice of DRAM access timing to match system performance (EDO/normal)
• Support for 2CAS/2WE mode
• Refresh control
·Host interfaces
• ISA bus (16-bit)
• i386/i486 local bus (16-bit)

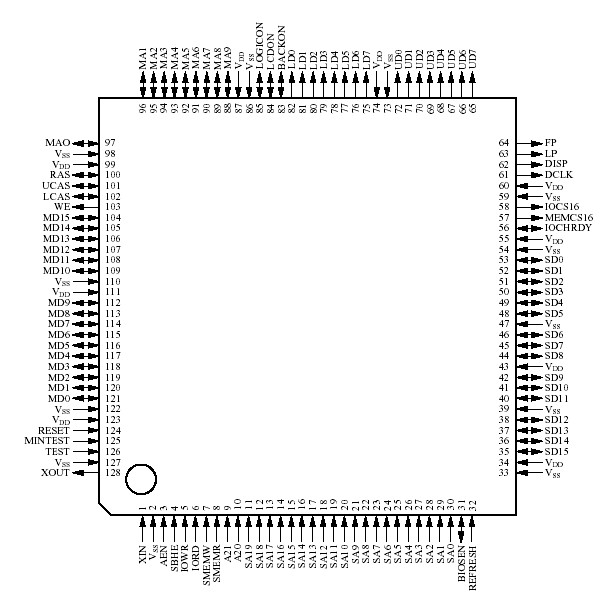

MN89303A Connection Diagram
MN89303A
PDF/DataSheet Download
- Datasheet: MN89303A
- File Size: 64130 KB
- Manufacturer: PANASONIC [Panasonic Semiconductor]
- Click here to Download
