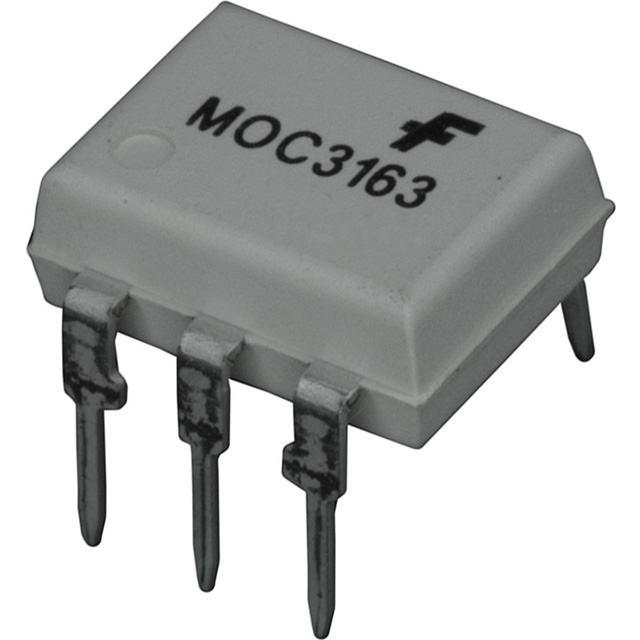

MOC3163-M Product Image

MOC Series Datasheet download

Five Points

Part Number: MOC3163-M



MFG: FAIRCHI





Description: The MOC306X-M and MOC316X-M devices consist of a GaAs infrared emitting diode optically coupled to a m...


Urgent Purchase

MOC3163-M General Description


The MOC306X-M and MOC316X-M devices consist of a GaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral triac driver. They are designed for use with a triac in the interface of logic systems to equipment powered from 115/240 VAC lines, such as solid-state relays, industrial controls, motors, solenoids and consumer appliances, etc.

MOC3163-M Maximum Ratings

Parameters
Symbol
Device
Value
Units
TOTAL DEVICE
Storage Temperature
TSTG
All
-40 to +150
Operating Temperature
TOPR
All
-40 to +85
Lead Solder Temperature
TSOL
All
260 for 10 sec
Junction Temperature Range
TJ
All
-40 to +100
Isolation Surge Voltage (4) (peak AC voltage, 60Hz, 1 sec duration)
VISO
All
7500
Vac(pk)
Total Device Power Dissipation @ 25°C
Derate above 25°C
PD
All
250
mW
2.94
mW/
EMITTER
Continuous Forward Current
IF
All
60
mA
Reverse Voltage
VR
All
6
V
Total Power Dissipation 25°C Ambient
Derate above 25°C
PD
All
120
mW
1.41
mW/
DETECTOR
Off-State Output Terminal Voltage
VDRM
All
600
V
Peak Repetitive Surge Current (PW = 1 ms, 120 pps)
ITSM
All
1
A
Total Power Dissipation @ 25°C Ambient
Derate above 25°C
PD
All
150
mW
1.76
mW/

MOC3163-M Features

• Simplifies logic control of 115/240 VAC power
• Zero voltage crossing
• dv/dt of 1000 V/µs guaranteed (MOC316X-M),
    600 V/ms guaranteed (MOC306X-M)
• VDE recognized (File # 94766)
    ordering option V (e.g., MOC3063V-M)
• Underwriters Laboratories (UL) recognized (File #E90700, volume 2)

MOC3163-M Typical Application

• Solenoid/valve controls
• Static power switches
• Temperature controls
• AC motor starters
• Lighting controls
• AC motor drives
• E.M. contactors
• Solid state relays
