MOCD207M

Maximum Collector Emitter Saturation Voltage : 0.4 V
Maximum Operating Temperature : + 100 C
Minimum Operating Temperature : - 40 C
Maximum Power Dissipation : 250 mW
Packaging : Bulk
Input Type : DC
Maximum Collector Current : 150 mA
Isolation Voltage : 2500 Vrms
Maximum Collector Emitter Voltage : 70 V
Current Transfer Ratio : 200 %
Package / Case : SOIC-8 Narrow
Maximum Forward Diode Voltage : 1.55 V


Features:

• Dual Channel Optocoupler
• Convenient Plastic SOIC-8 Surface Mountable Package Style
• Two channels in one compact surface mount package
• Closely Matched Current Transfer Ratios to Minimize Unit-to-Unit Variation
• Minimum V_(BR)CEO of 70 Volts Guaranteed
• Standard SOIC-8 Footprint, with 0.050" Lead Spacing
• Compatible with Dual Wave, Vapor Phase and IR Reflow Soldering
• High Input-Output Isolation of 2500 Vac (rms) Guaranteed
• Meets U.L. Regulatory Requirements, File #E90700, Volume 2




Application

• Feedback control circuits
• Interfacing and coupling systems of different potentials and impedances
• General purpose switching circuits
• Monitor and detection circuits

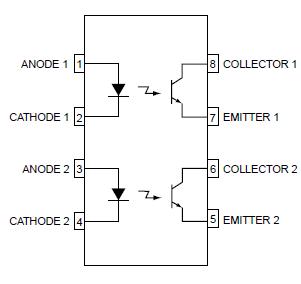

Pinout






Specifications

Rating	Symbol	Value	Unit
EMITTER
Forward Current - Continuous	IF	60	mA
Forward Current - Peak (PW = 100 s, 120 pps)	IF (pk)	1.0	A
Reverse Voltage	VR	6.0	V
LED Power Dissipation @ TA = 25°C Derate above 25°C	PD	90 0.8	mW mW/°C
DETECTOR
Collector-Emitter Voltage	VCEO	70	V
Collector-Base Voltage	VCBO	70	V
Emitter-Collector Voltage	VECO	7.0	V
Collector Current-Continuous	IC	150	mA
Detector Power Dissipation @ TA = 25°C Derate above 25°C	PD	150 1.76	mW mW/°C
TOTAL DEVICE
Input-Output Isolation Voltage (1,2) (f = 60 Hz, 1 min. Duration)	VISO	2500	Vac(rms)
Total Device Power Dissipation @ TA = 25°C Derate above 25°C	PD	250 2.94	mW mW/°C
Ambient Operating Temperature Range	TA	-45 to +100	°C
Storage Temperature Range	Tstg	-45 to +125	°C
Lead Soldering Temperature (1/16" from case, 10 sec. duration)	TL	260	°C

Description

The MOCD207M is designed as one kind of dual channel phototransistor small outline surface mount optocoupler that consists of two silicon phototran-sistors optically coupled to two GaAs infrared LEDs. This device can be used in (1)Feedback control circuits; (2)Interfacing and coupling systems of different potentials and impedances; (3)General purpose switching circuits; (4)Monitor and detection circuits applications. Also it is available in a small outline surface mount package with standard SOIC-8.

Features of the MOCD207M are:(1)dual channel optocoupler; (2)convenient plastic SOIC-8 surface mountable package style; (3)two channels in one compact surface mount package; (4)closely matched current transfer ratios to minimize unit-to-unit variation; (5)minimum V(BR)CEO of 70 volts guaranteed; (6)standard SOIC-8 footprint, with 0.050" lead spacing; (7)compatible with dual wave, vapor phase and IR reflow soldering; (8)high input-output isolation of 2500 Vac (rms) guaranteed; (9)meets U.L. regulatory requirements, file #E90700, volume 2.

The absolute maximum ratings of the MOCD207M can be summarized as:(1)Forward Current - Continuous: 60 mA;(2)Forward Current - Peak (PW = 100 s, 120 pps): 1.0 A;(3)Reverse Voltage: 6.0 V;(4)LED Power Dissipation @ TA = 25°C: 90 mW;(5)Dissipation Derate above 25°C: 0.8 mW/°C;(6)Collector-Emitter Voltage: 70 V;(7)Collector-Base Voltage: 70 V;(8)Emitter-Collector Voltage: 7.0 V;(9)Collector Current-Continuous: 150 mA. If you want to know more information about MOCD207M, please download the datasheet in www.seekic.com or www.chinaicmart.com .

Parameters:

Technical/Catalog Information	MOCD207M
Vendor	Fairchild Optoelectronics Group
Category	Isolators
Voltage - Isolation	2500Vrms
Input Type	DC
Output Type	Transistor
Current - Output / Channel	150mA
Voltage - Output	70V
Vce Saturation (Max)	400mV
Current Transfer Ratio (Min)	100% @ 10mA
Mounting Type	Surface Mount
Package / Case	8-SOIC
Packaging	Tube
Number of Circuits	2 - Dual
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MOCD207M MOCD207M
