Part Number: MOCD213



MFG: QTC

Package Cooled: SOP/8P

D/C: 01+

Description: This device consists of two gallium arsenide infrared emitting diodes optically coupled to two monolithic silicon photo...


Urgent Purchase

MOCD213 General Description


This device consists of two gallium arsenide infrared emitting diodes optically coupled to two monolithic silicon phototransistor detectors, in a surface mountable, small outline, plastic package. It is ideally suited for high density applications and eliminates the need for throughtheboard mounting.

MOCD213 Maximum Ratings

Rating Symbol Value Unit
INPUT LED
Forward Current - Continuous IF 60 mA
Forward Current - Peak (PW = 100 s, 120 pps) IF (pk) 1.0 A
Reverse Voltage VR 6.0 V
LED Power Dissipation @ TA = 25°C
Derate above 25°C		 PD

 90
0.8 		mW
mW/°C
OUTPUT TRANSISTOR
Collector-Emitter Voltage VCEO 70 V
Collector-Base Voltage VCBO 70 V
Emitter-Collector Voltage VECO 7.0 V
Collector Current-Continuous IC 150 mA
Detector Power Dissipation @ TA = 25°C
Derate above 25°C 		PD
 150
1.76 		mW
mW/°C
TOTAL DEVICE
Input-Output Isolation Voltage (1,2) (f = 60 Hz, 1 min. Duration) VISO 3000 Vac(rms)
Total Device Power Dissipation @ TA = 25°C
Derate above 25°C 		PD
250
2.94		 mW
mW/°C
Ambient Operating Temperature Range (3) TA -55 to +100 °C
Storage Temperature Range (3) Tstg -55 to +150 °C
Lead Soldering Temperature (1/16" from case, 10 sec. duration) - 260 °C

MOCD213 Features

• Dual Channel Coupler
• Convenient Plastic SOIC8 Surface Mountable Package Style
• Minimum Current Transfer Ratio 100% with Input Current of 10 mA
• Minimum V(BR)CEO of 70 Volts Guaranteed
• Standard SOIC8 Footprint, with 0.050, Lead Spacing
• Shipped in Tape and Reel, which Conforms to EIA Standard RS481A
• Compatible with Dual Wave, Vapor Phase and IR Reflow Soldering
• High InputOutput Isolation of 3000 Vac (rms) Guaranteed
• Meets U.L. Regulatory Requirements, File #E54915

MOCD213 Typical Application

• Feedback Control Circuits
• Interfacing and Coupling Systems of Different Potentials and Impedances
• General Purpose Switching Circuits
• Monitor and Detection Circuits

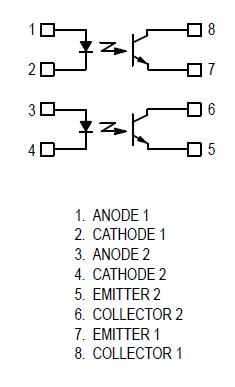

MOCD213 Connection Diagram

MOCD213 Connection Diagram

MOCD213 datasheet

MOCD213
PDF/DataSheet Download
