Part Number: MP6205









Description: The MP6205 Power Distribution Switch features internal current limiting to prevent damage to host devices due to faulty load conditions. T...


Urgent Purchase

MP6205 General Description


The MP6205 Power Distribution Switch features internal current limiting to prevent damage to host devices due to faulty load conditions. The MP6205 Analog switch features 90mΩ on-resistance and operates from 2.7V to 5.5V input. It is available with a guaranteed current limit, making it ideal for load switching applications. The MP6205 has built-in protection for both over current and increased thermal stress. For over current, the device will limit the current by changing to a constant current mode.As the temperature increases as a result of short circuit, the device will shut off. The device will recover once the device temperature reduces to approx 120C.The MP6205 is available in QFN8, MSOP8E, SOIC8E and TSOT23-5 packages.

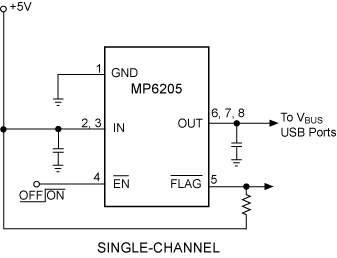

MP6205 Connection Diagram

MP6205 Image

MP6205 datasheet
