Part Number: MP6211/MP6212









Description: The MP6211/MP6212 single-channel Power Distribution Switch features internal current limiting to prevent damage to host devices due to fau...


Urgent Purchase

MP6211/MP6212 General Description


The MP6211/MP6212 single-channel Power Distribution Switch features internal current limiting to prevent damage to host devices due to faulty load conditions. The MP6211/MP6212 Analog switch has 90mΩ; on-resistance and operates from 2.7V to 5.5V input. It is available with guaranteed current limits, making it ideal for load switching applications. The MP6211/MP6212 has built-in protection for both over current and increased thermal stress. For over current, the device will limit the current by changing to a constant current mode. As the temperature increases as a result of short circuit, the device will shut off. The device will recover once the device temperature reduces to approx 120C The MP6211/MP6212 is available in an 8-PIN MSOP and SOIC package with exposed pad.

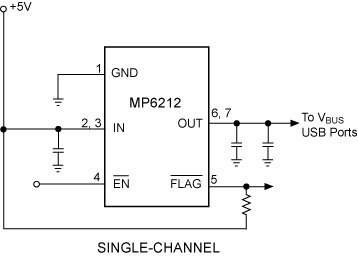

MP6211/MP6212 Connection Diagram

MP6211/MP6212 Image

MP6211/MP6212 datasheet
