General Description
The MPIC2131 is a high voltage, high speed, power MOSFET and IGBT driver with three independent high side and low side referenced output channels for 3–Phase applications. Proprietary HVIC technology enables ruggedized monolithic construction. Logic inputs are compatible with 5 V CMOS or LSTTL outputs. A ground referenced operational amplifier provides an analog feedback of bridge current via an external current sense resistor. A current trip function which terminates all six outputs is also derived from an external current sense resistor. An extra shutdown input is provided for customizing the shutdown function. An open drain FAULT signal is provided to indicate that any of shutdown conditions has occurred. The output drivers feature a high pulse current buffer stage designed for minimum driver cross–conduction. Propagation delays are matched to simplify use in high frequency applications.
The floating channels can be used to drive N–channel power MOSFET or IGBT’s in the high side configuration which operate from 10 to 600 volts.
Maximum Ratings
| Rating |
Symbol |
Min |
Max |
Unit |
| High Side Floating Absolute Voltage High Side Floating Supply Offset Voltage High Side Floating Output Voltage Low Side Output Voltage Fixed Supply Voltage Fixed Supply Offset Voltage Logic Input Voltage (HIN–, LIN–, FLT–, CLR–, SD & ITRIP) Fault Output Voltage |
VB1,2,3 B1,2,3 VS1,2,3 VHO1,2,3 VLO1,2,3 VCC VSS VIN FAULT |
–0.3 VB1,2,3–25 VS1,2,3–0.3 –0.3 –0.3 VCC–25 VSS–0.3 VSS–0.3 |
625 VB1,2,3+0.3 VB1,2,3+0.3 VCC+0.3 25 VCC+0.3 VCC+0.3 VCC+0.3 |
VDC |
| Allowable Offset Supply Voltage Transient |
dVS/dt |
– |
50 |
V/ns |
| *Package Power Dissipation @ TC ≤ +25℃ (28 Lead DIP) |
PD |
– |
1.5 |
Watt |
| Operating and Storage Temperature |
Tj, Tstg |
–55 |
150 |
℃ |
| Thermal Resistance, Junction to Ambient (8 Lead DIP) |
RqJA |
– |
83 |
℃ /W |
| Lead Temperature for Soldering Purposes, 10 seconds |
TL |
– |
260 |
℃ |
Features
• Floating Channel Designed for Bootstrap Operation
• Fully Operational to +600 V
• Tolerant to Negative Transient Voltage
• dV/dt Immune
• Gate Drive Supply Range from 10 to 20 V
• Undervoltage Lockout for All Channels
• Over–current Shut Down Turns Off All Six Drivers
• Independent 3 High Side & 3 Low Side Drivers
• Matched Propagation Delay for All Channels
• Outputs Out of Phase with Inputs PRODUCT SUMMARY
• Fully Operational to +600 V
• Tolerant to Negative Transient Voltage
• dV/dt Immune
• Gate Drive Supply Range from 10 to 20 V
• Undervoltage Lockout for All Channels
• Over–current Shut Down Turns Off All Six Drivers
• Independent 3 High Side & 3 Low Side Drivers
• Matched Propagation Delay for All Channels
• Outputs Out of Phase with Inputs PRODUCT SUMMARY

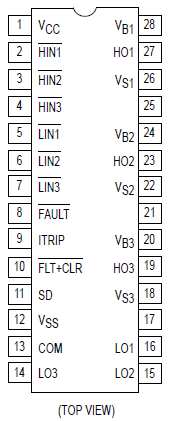

Connection Diagram
