MPSA12_D75Z

Transistors Darlington NPN Transistor Darlington

product image

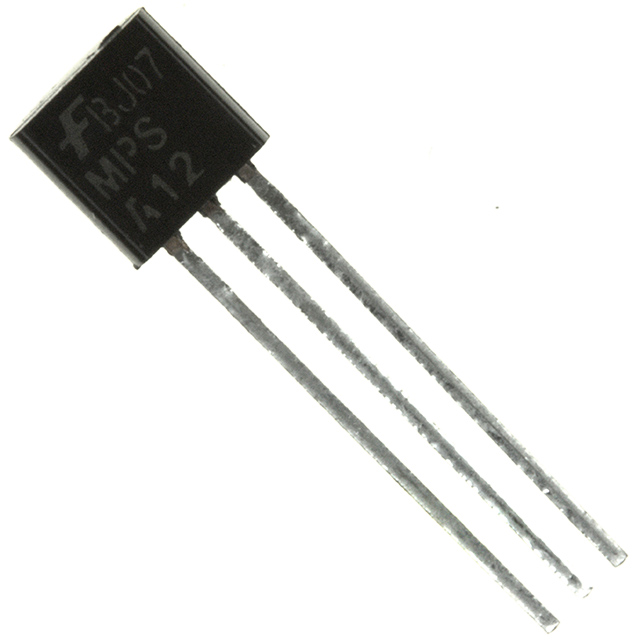

MPSA12_D75Z Picture
See larger image
SeekIC No. : 00217555 Detail

MPSA12_D75Z: Transistors Darlington NPN Transistor Darlington

MPSA12_D75Z Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MPSA12_D75Z
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Configuration : Single Transistor Polarity : NPN
Collector- Emitter Voltage VCEO Max : 20 V Emitter- Base Voltage VEBO : 10 V
Collector- Base Voltage VCBO : 20 V Maximum DC Collector Current : 1.2 A
Maximum Collector Cut-off Current : 0.1 uA Power Dissipation : 625 mW
Maximum Operating Temperature : + 150 C Mounting Style : Through Hole
Package / Case : TO-92-3 Kinked Lead Packaging : Ammo

Description

Transistor Polarity : NPN
Mounting Style : Through Hole
Configuration : Single
Maximum Operating Temperature : + 150 C
Emitter- Base Voltage VEBO : 10 V
Maximum Collector Cut-off Current : 0.1 uA
Maximum DC Collector Current : 1.2 A
Power Dissipation : 625 mW
Package / Case : TO-92-3 Kinked Lead
Packaging : Ammo
Collector- Emitter Voltage VCEO Max : 20 V
Collector- Base Voltage VCBO : 20 V


Parameters:

Technical/Catalog InformationMPSA12_D75Z
VendorFairchild Semiconductor
CategoryDiscrete Semiconductor Products
Transistor TypeNPN - Darlington
Voltage - Collector Emitter Breakdown (Max)20V
Current - Collector (Ic) (Max)1.2A
Power - Max625mW
DC Current Gain (hFE) (Min) @ Ic, Vce20000 @ 10mA, 5V
Vce Saturation (Max) @ Ib, Ic1V @ 10A, 10mA
Frequency - Transition-
Current - Collector Cutoff (Max)100nA
Mounting TypeThrough Hole
Package / CaseTO-92
PackagingTape & Box (TB)
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MPSA12_D75Z
MPSA12_D75Z
