Part Number: MR27C1602B
Description: The MR27C1602B is a 16 Mbit electrically One Time Programmable Read-Only Memory that can be electrically switched betwe...
- Table of contents:
MR27C1602B
-
Suppliers
DataSheet
General Description
MR27C1602B General Description
The MR27C1602B is a 16 Mbit electrically One Time Programmable Read-Only Memory that can be electrically switched between 1,048,576-word × 16-bit and 2,097,152-word × 8-bit by the state of the BYTE# pin. The MR27C1602B supports high speed asynchronous read operation using a single 5.0V power supply.
MR27C1602B Maximum Ratings
|
Parameter |
Symbol |
Condition |
Value |
Unit |
| Operating temperature under bias |
Ta |
- |
0 to 70 |
°C |
| Storage temperature |
Tstg |
55 to 125 |
°C | |
| Input voltage |
VI |
relative to VSS |
0.5 to VCC+0.5 |
V |
| Output voltage |
VO |
0.5 to VCC+0.5 |
V | |
| Power supply voltage |
VCC |
0.5 to 5 |
V | |
| Program power supply voltage |
VPP |
0.5 to 11.5 |
V | |
| Power dissipation per package |
PD |
- |
1.0 |
W |
MR27C1602B Features
` 1,048,576-word * 16-bit/2,097,152-word * 8-bit electrically switchable configuration
` +5.0 V power supply
` Access time 90 nS MAX
` Operating current 70 mA MAX
` Standby current 50 A MAX
` Input/Output TTL compatible
` Tri-state output
` Packages:
42-pin plastic DIP (DIP42-P-600-2.54) (MR27C1602BRA)
44-pin plastic SOP (SOP44-P-600-1.27-K (MR27C1602BMA)
` +5.0 V power supply
` Access time 90 nS MAX
` Operating current 70 mA MAX
` Standby current 50 A MAX
` Input/Output TTL compatible
` Tri-state output
` Packages:
42-pin plastic DIP (DIP42-P-600-2.54) (MR27C1602BRA)
44-pin plastic SOP (SOP44-P-600-1.27-K (MR27C1602BMA)

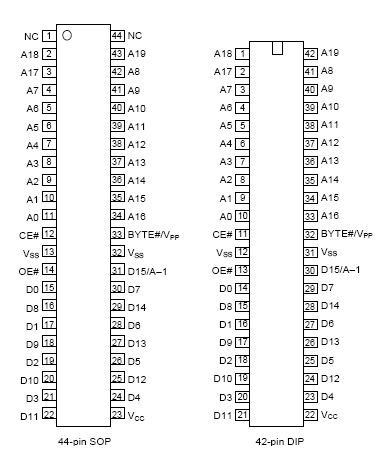

MR27C1602B Connection Diagram
MR27C1602B
