MR27T12800J
-
Suppliers
DataSheet
General Description
MR27T12800J Maximum Ratings
|
Parameter |
Symbol |
Condition |
Value |
Unit |
| Operating temperature under bias |
Ta |
- |
0 to 70 |
°C |
| Storage temperature |
Tstg |
55 to 125 |
°C | |
| Input voltage |
VI |
relative to VSS |
0.5 to VCC+0.5 |
V |
| Output voltage |
VO |
0.5 to VCC+0.5 |
V | |
| Power supply voltage |
VCC |
0.5 to 5 |
V | |
| Power dissipation per package |
PD |
Ta = 25°C |
1.0 |
W |
|
Output short circuit current |
IOS |
- |
10 |
MA |
MR27T12800J Features
`8,388,608-word * 16-bit/16,777,216-word * 8-bit electrically switchable configuration
` Access time
` MR27T12800J-xxxTN, MR27T12800J-xxxTY
` 2.7 V to 3.6 V power supply 90 ns MAX
` MR27T12800J-xxxTNE , MR27T12800J-xxxTYE
` 2.7 V to 3.0 V power supply 120 ns MAX
` 3.0 V to 3.6 V power supply 100 ns MAX
` Operating current 25 mA MAX(5MHz)
` Standby current 10 A MAX
` Input/Output TTL compatible
` Three-state output
` Access time
` MR27T12800J-xxxTN, MR27T12800J-xxxTY
` 2.7 V to 3.6 V power supply 90 ns MAX
` MR27T12800J-xxxTNE , MR27T12800J-xxxTYE
` 2.7 V to 3.0 V power supply 120 ns MAX
` 3.0 V to 3.6 V power supply 100 ns MAX
` Operating current 25 mA MAX(5MHz)
` Standby current 10 A MAX
` Input/Output TTL compatible
` Three-state output

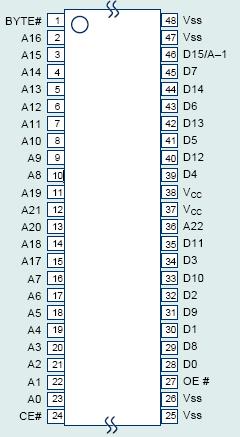

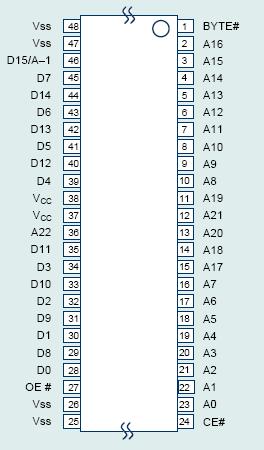

MR27T12800J Connection Diagram
MR27T12800J
