Purchase MRF21125S, In-stock MRF21125S From SeekIC.
MFG:MOT
- Table of contents:
MRF21125S
-
Suppliers
DataSheet
General Description
MRF21125S Maximum Ratings
| Rating | Symbol | Value | Unit |
| Drain-Source Voltage | VDSS | 65 | Vdc |
| Gate-Source Voltage | VGS | -0.5, +15 | Vdc |
| Total Device Dissipation @ TC = 25°C Derate above 25°C |
PD | 330 1.89 |
Watts W/°C |
| Storage Temperature Range | Tstg | -65 to +150 | °C |
| Operating Junction Temperature | TJ | 200 | °C |
MRF21125S Typical Application
Typical 2carrier WCDMA Performance for VDD = 28 Volts, IDQ = 1600
mA, f1 = 2.1125 GHz, f2 = 2.1225 GHz, Channel bandwidth = 3.84 MHz,
adjacent channels at ± 5 MHz , ACPR and IM3 measured in 3.84 MHz
bandwidth. Peak/Avg = 8.5 dB @ 0.01% probability on CCDF.
Output Power - 20 Watts
Efficiency - 18%
Gain - 13 dB
IM3 - 43 dBc
ACPR - 45 dBc
100% Tested under 2carrier WCDMA
Internally Matched, Controlled Q, for Ease of Use
High Gain, High Efficiency and High Linearity
Integrated ESD Protection
Designed for Maximum Gain and Insertion Phase Flatness
Capable of Handling 5:1 VSWR, @ 28 Vdc, 2170 MHz, 125 Watts (CW) Output Power
Excellent Thermal Stability
Characterized with Series Equivalent LargeSignal Impedance Parameters
Available in Tape and Reel. R3 Suffix = 250 Units per 56 mm, 13 inch Reel.
mA, f1 = 2.1125 GHz, f2 = 2.1225 GHz, Channel bandwidth = 3.84 MHz,
adjacent channels at ± 5 MHz , ACPR and IM3 measured in 3.84 MHz
bandwidth. Peak/Avg = 8.5 dB @ 0.01% probability on CCDF.
Output Power - 20 Watts
Efficiency - 18%
Gain - 13 dB
IM3 - 43 dBc
ACPR - 45 dBc
100% Tested under 2carrier WCDMA
Internally Matched, Controlled Q, for Ease of Use
High Gain, High Efficiency and High Linearity
Integrated ESD Protection
Designed for Maximum Gain and Insertion Phase Flatness
Capable of Handling 5:1 VSWR, @ 28 Vdc, 2170 MHz, 125 Watts (CW) Output Power
Excellent Thermal Stability
Characterized with Series Equivalent LargeSignal Impedance Parameters
Available in Tape and Reel. R3 Suffix = 250 Units per 56 mm, 13 inch Reel.

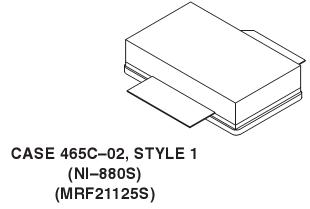

MRF21125S Connection Diagram
MRF21125S
PDF/DataSheet Download
- Datasheet: MRF21125S
- File Size: 390434 KB
- Manufacturer: MOTOROLA [Motorola, Inc]
- Click here to Download
