General Description
MSC1164 General Description
The MSC1164 is a monolithic IC using the Bi-CMOS process technology for hybridizing CMOS and bipolar transistors on the same chip. The logic portion such as the input stage, shift register and latch is fabricated by CMOS and the output driver requiring a high withstand voltage is fabricated by bipolar transistors.
Since a 32-pin plastic SSOP package is used, the display unit size can be reduced.
MSC1164 Maximum Ratings
| Parameter |
Symbol |
Condition |
Rating |
Unit |
Note |
| Logic Supply Voltage |
VCC |
Applicable to logic supply voltage pin |
0.3 to +65 |
V |
1 |
| Driver Supply Voltage |
VHV |
Applicable to driver supplyvoltage pin |
VCC to 70 |
V |
1,2 |
| Input Voltage |
VIN |
voltage pin |
0.3 to VCC +0.3 |
V |
1 |
| Data Output Voltage |
VOD |
Applicable to data output pin |
0.3 to VCC +0.3 |
V |
1 |
| Driver Driving Frequency |
fDRV |
Duty cycle 50% max |
0 to 15 |
kHz |
- |
| Power Dissipation |
PD |
Ta 25°C |
790 |
mW |
- |
| Thermal Resistance of Package |
Rj-a |
- |
158 |
°C/W |
3 |
| Storage Temperature |
TSTG |
- |
55 to +150 |
°C |
Stresses beyond "Absolute Maximum Rating" may cause permanent damage to the device.
Thermal resistance of the package (between junction and atmosphere)
The junction temperature (Tj) expressed by the equation below must not exceed 150°C.
Tj=P * Rja+Ta (P: Maximum power consumption)
MSC1164 Features
The MSC1164 is designed as a VFD grid/anode driver with emitter-follower force output with
20-bit active pull-down and built-in 20-bit shift register and latch.
• Logic Supply Voltage (VCC) :5V
• Driver Supply Voltage (VHV) : 65V
• Driver Output Current
IOHVH1 :40mA (Only one driver output: "H")
IOHVH2 :2mA (All driver outputs: "H")
IOHVL :2mA
• 20-bit output (with latch circuit)
• 20-bit shift register
• Clock frequency : 4MHz
• Package options:
32-pin plastic SSOP (SSOP32-P-430-1.00-K) (Product name: MSC1164GS-K)
30-pin plastic shrink DIP (SDIP30-P-400-1.78) (Product name: MSC1164SS)
20-bit active pull-down and built-in 20-bit shift register and latch.
• Logic Supply Voltage (VCC) :5V
• Driver Supply Voltage (VHV) : 65V
• Driver Output Current
IOHVH1 :40mA (Only one driver output: "H")
IOHVH2 :2mA (All driver outputs: "H")
IOHVL :2mA
• 20-bit output (with latch circuit)
• 20-bit shift register
• Clock frequency : 4MHz
• Package options:
32-pin plastic SSOP (SSOP32-P-430-1.00-K) (Product name: MSC1164GS-K)
30-pin plastic shrink DIP (SDIP30-P-400-1.78) (Product name: MSC1164SS)

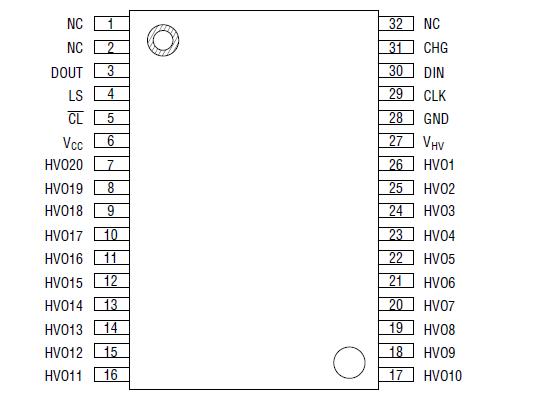

MSC1164 Connection Diagram
MSC1164
