MSC1218

Features: • Power supply Voltage : 8 to 18V (built-in 5V regulator for logic circuit)• Operating temperature : -40 to +85°C• 21-segment driver outputs : IOH=6mA at VOH=VDD0.8V• 3-grid driver outputs : IOH=16mA at VOH=VDD0.8V• Built-in digital dimming circuit : 10-bit ...

product image

MSC1218 Picture
See larger image
SeekIC No. : 004427835 Detail

MSC1218: Features: • Power supply Voltage : 8 to 18V (built-in 5V regulator for logic circuit)• Operating temperature : -40 to +85°C• 21-segment driver outputs : IOH=6mA at VOH=VDD0.8V̶...

MSC1218 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSC1218
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2026/1/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Power supply Voltage :                      8 to 18V (built-in 5V regulator for logic circuit)
• Operating temperature :                    -40 to +85°C
• 21-segment driver outputs :              IOH=6mA at VOH=VDD0.8V
• 3-grid driver outputs :                        IOH=16mA at VOH=VDD0.8V
• Built-in digital dimming circuit :           10-bit resolution
• Built-in RC oscillation circuit :              External R and C
• Built-in Power-On-Reset circuit
• Package:
       32-pin plastic SSOP(SSOP32-P-430-1.00-K) (Product name: MSC1218GS-K)


Pinout

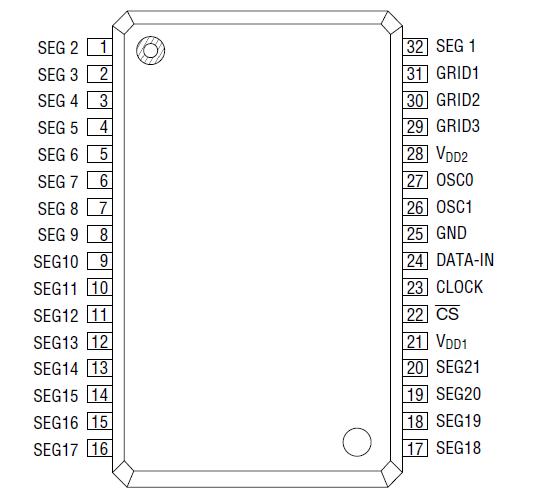

Connection Diagram


Specifications

Parameter Symbol Condition Rating Unit
Power Supply Voltage VDD - 0.3 to +20 V
Input Voltage VIN All input pins 0.3 to +6.0 V
Storage Temperature TSTG - 65 to +150 °C
Power Dissipation PD Ta = +85°C 400 mW



Description

The MSC1218 is a Bi-CMOS driver for 1/3 duty vacuum fluorescent display tube.

MSC1218 contains a 64-bit shift register, a 63-bit latch, a 10-bit digital dimming circuit, and three grids.

The MSC1218 has only three microcontroller interface signal lines: CS, D-IN, and CLOCK.

The chip MSC1218 select function enables the D-IN and CLOCK lines to be shared with other peripheral circuits.
