Purchase MSC1951-01, In-stock MSC1951-01 From SeekIC.
MFG:OKI D/C:05/
Part Number: MSC1951-01
MFG: OKI
D/C: 05/
Description: MSC1951-01 is a Bi-CMOS bargraph and alphanumeric display controller designed to interface with either...
- Table of contents:
MSC1951-01
-
Suppliers
DataSheet
General Description
MSC1951-01 General Description
MSC1951-01 is a Bi-CMOS bargraph and alphanumeric display controller designed to interface with either vacuum fluorescent display.
MSC1951-01 can drive displays with up to 16 figures with either 16 segment bargraph or sevensegment type code plus a decimal point and comma tail.
MSC1951-01 adopts a serial interface system, which allows data transfer from the microcomputer only by two signal lines of SCLK and DATA.
MSC1951-01 Maximum Ratings
| Parameter | Symbol | Rating | Unit | |||
| Power Supply Voltage | VSS | 0.3 to +6.5 | V | |||
| Input Voltage | VIN | 0.3 to VSS + 0.3 | V | |||
| Output Voltage | VGG | VSS 58 to VSS + 0.3 | V | |||
| Output Current | ILOAD | Digit | 25 | mA | ||
| Segment | DIP | 20 | mA | |||
| QFP | 10 | mA | ||||
| Storage Temperature | TSTG | 55 to +150 | °C | |||
MSC1951-01 Features
• Can display up to 16 digits of 7-segment type character with comma/point or of 16-segment type bargraph.
• The number of display digits is programmable within 16.
• The brightness adjustment is programmable by 1/32 step.
• The display contents can be changed at any digit.
• Buit-in PLA can display alphanumeric characters, e.g., 0 to 9 A, C, E, F, P, L (capital letters), b,
and d (small letters). In addition, 16-segment dot display and bar display are allowed.
• Instruction is executed by one byte.
• Driver output
Current : 20 mA max. (Digit)
10 mA (Segment), Plastic DIP
05 mA (Segment), Plastic QFP
Withstand voltage : 58 V max.
• Can be used for LED.
• Pin compatible with 10951 manufactured by Rockwell.
• Power supply voltage : 5V ± 10%
• Package options:
40-pin plastic DIP (DIP40-P-600-2.54) (Product name : MSC1951-01RS)
44-pin plastic QFP (QFP44-P-910-0.80-K) (Product name : MSC1951-01GS-K)
• The number of display digits is programmable within 16.
• The brightness adjustment is programmable by 1/32 step.
• The display contents can be changed at any digit.
• Buit-in PLA can display alphanumeric characters, e.g., 0 to 9 A, C, E, F, P, L (capital letters), b,
and d (small letters). In addition, 16-segment dot display and bar display are allowed.
• Instruction is executed by one byte.
• Driver output
Current : 20 mA max. (Digit)
10 mA (Segment), Plastic DIP
05 mA (Segment), Plastic QFP
Withstand voltage : 58 V max.
• Can be used for LED.
• Pin compatible with 10951 manufactured by Rockwell.
• Power supply voltage : 5V ± 10%
• Package options:
40-pin plastic DIP (DIP40-P-600-2.54) (Product name : MSC1951-01RS)
44-pin plastic QFP (QFP44-P-910-0.80-K) (Product name : MSC1951-01GS-K)

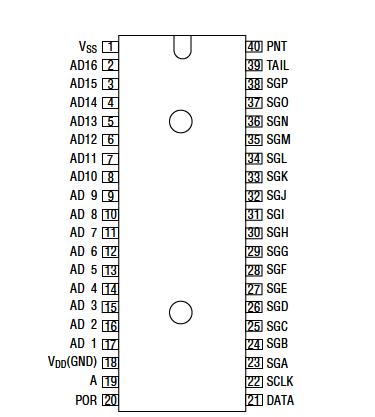

MSC1951-01 Connection Diagram
MSC1951-01
