Part Number: MSM5116160D
MFG: 11000
Package Cooled: OKI
Description: The MSM5116160D/DSL is a 1,048,576-word*16-bit dynamic RAM fabricated in Oki...
- Table of contents:
MSM5116160D
-
Suppliers
DataSheet
General Description
MSM5116160D General Description
The MSM5116160D/DSL is a 1,048,576-word*16-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology. The MSM5116160D/DSL achieves high integration, high-speed operation, and ow-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/ ouble-layer metal CMOS process. The MSM5116160D/DSL is available in a 42-pin plastic SOJ or 0/44-pin plastic TSOP. The MSM5116160DSL (the self-refresh version) is specially designed for ower-power applications.
MSM5116160D Maximum Ratings
|
Parameter |
Storage Temperature |
Rating |
Unit |
| Voltage on Any Pin Relative to VSS |
VIN, VOUT |
0.5 to VCC + 0.5 |
V |
| Voltage on VCC Supply Relative to VSS |
VCC |
0.5 to 7 |
V |
| Short Circuit Output Current |
IOS |
50 |
mA |
| Power Dissipation |
PD* |
1 |
W |
| Operating Temperature |
Topr |
0 to 70 |
|
| Storage Temperature |
Tstg |
55 to 150 |
MSM5116160D Features
• 1,048,576-word ´ 16-bit configuration
• Single 5 V power supply, ±10% tolerance
• Input : TTL compatible, low input capacitance
• Output : TTL compatible, 3-state
• Refresh : 4096 cycles/64 ms, 4096 cycles/128 ms (SL version)
• Fast page mode, read modify write capability
• CAS before RAS refresh, hidden refresh, RAS-only refresh capability
• CAS before RAS self-refresh capability (SL version)
• Package options:
42-pin 400 mil plastic SOJ (SOJ42-P-400-1.27) (Product : MSM5116160D/DSL-xxJS)
50/44-pin 400 mil plastic TSOP (TSOPII50/44-P-400-0.80-K)(Product : MSM5116160D/DSL-xxTS-K)
(TSOPII50/44-P-400-0.80-L) (Product : MSM5116160D/DSL-xxTS-L)
xx indicates speed rank.
• Single 5 V power supply, ±10% tolerance
• Input : TTL compatible, low input capacitance
• Output : TTL compatible, 3-state
• Refresh : 4096 cycles/64 ms, 4096 cycles/128 ms (SL version)
• Fast page mode, read modify write capability
• CAS before RAS refresh, hidden refresh, RAS-only refresh capability
• CAS before RAS self-refresh capability (SL version)
• Package options:
42-pin 400 mil plastic SOJ (SOJ42-P-400-1.27) (Product : MSM5116160D/DSL-xxJS)
50/44-pin 400 mil plastic TSOP (TSOPII50/44-P-400-0.80-K)(Product : MSM5116160D/DSL-xxTS-K)
(TSOPII50/44-P-400-0.80-L) (Product : MSM5116160D/DSL-xxTS-L)
xx indicates speed rank.

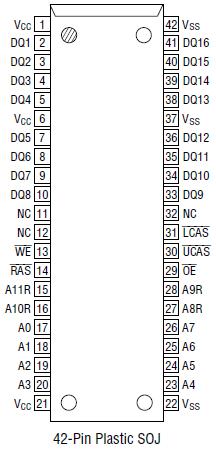

MSM5116160D Connection Diagram
