Purchase MSM5116405C, In-stock MSM5116405C From SeekIC.
Part Number: MSM5116405C
Description: The MSM5116405C is a 4,194,304-word × 4-bit dynamic RAM fabricated in Oki's ...
- Table of contents:
MSM5116405C
-
Suppliers
DataSheet
General Description
MSM5116405C General Description
The MSM5116405C is a 4,194,304-word × 4-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology. The MSM5116405C achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/double-layer metal CMOS process. The MSM5116405C is available in a 26/24-pin plastic SOJ or 26/24-pin plastic TSOP.
MSM5116405C Maximum Ratings
|
Parameter |
Symbol |
Rating |
Unit |
| Voltage on Any Pin Relative to VSS |
VIN, VOUT |
0.5 to VCC + 0.5 |
V |
| Voltage on VCC Supply Relative to VSS |
VCC |
0.5 to 7 |
V |
| Short Circuit Output Current |
IOS |
50 |
mA |
| Power Dissipation |
PD* |
1 |
W |
| Operating Temperature |
Topr |
0 to 70 |
|
| Storage Temperature |
Tstg |
55 to 150 |
MSM5116405C Features
· 4,194,304-word × 4-bit configuration
· Single 5 V power supply, ±10% tolerance
· Input : TTL compatible, low input capacitance
· Output : TTL compatible, 3-state
· Refresh : 4096 cycles/64 ms
· Fast page mode with EDO, read modify write capability
· CAS before RAS refresh, hidden refresh, RAS-only refresh capability
· Multi-bit test mode capability
· Package options:
26/24-pin 300 mil plastic SOJ (SOJ26/24-P-300-1.27) (Product : MSM5116405C-xxSJ)
26/24-pin 300 mil plastic TSOP (TSOPII26/24-P-300-1.27-K) (Product : MSM5116405C-xxTS-K)
(TSOPII26/24-P-300-1.27-L) (Product : MSM5116405C-xxTS-L)
xx indicates speed rank.
· Single 5 V power supply, ±10% tolerance
· Input : TTL compatible, low input capacitance
· Output : TTL compatible, 3-state
· Refresh : 4096 cycles/64 ms
· Fast page mode with EDO, read modify write capability
· CAS before RAS refresh, hidden refresh, RAS-only refresh capability
· Multi-bit test mode capability
· Package options:
26/24-pin 300 mil plastic SOJ (SOJ26/24-P-300-1.27) (Product : MSM5116405C-xxSJ)
26/24-pin 300 mil plastic TSOP (TSOPII26/24-P-300-1.27-K) (Product : MSM5116405C-xxTS-K)
(TSOPII26/24-P-300-1.27-L) (Product : MSM5116405C-xxTS-L)
xx indicates speed rank.

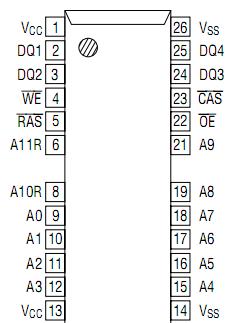

MSM5116405C Connection Diagram
MSM5116405C
