Part Number: MSM5118165F
Description: The MSM5118165F is a 1,048,576-word * 16-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technol...
- Table of contents:
MSM5118165F
-
Suppliers
DataSheet
General Description
MSM5118165F General Description
The MSM5118165F is a 1,048,576-word * 16-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology. The MSM51V18165F achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/double-layer metal CMOS process.
The MSM5118165F is available in a 42-pin plastic SOJ or 50/44-pin plastic TSOP.
MSM5118165F Maximum Ratings
|
Parameter |
Symbol |
Value |
Unit |
| Voltage on Any Pin Relative to VSS |
VIN, VOUT |
0.5 to VCC+ 0.5 |
V |
| Voltage VCC Supply relative to VSS |
VCC |
0.5 to 7 |
V |
| Short Circuit Output Current |
IOS |
50 |
mA |
| Power Dissipation |
PD* |
1 |
W |
| Operating Temperature |
Topr |
0 to 70 |
°C |
| Storage Temperature |
Tstg |
55 to 150 |
°C |
MSM5118165F Features
· 1,048,576-word × 16-bit configuration
· Single 5V power supply, ±10% tolerance
· Input : TTL compatible, low input capacitance
· Output : TTL compatible, 3-state
· Refresh : 1024 cycles/16ms
· Fast page mode with EDO, read modify write capability
· CAS before RAS refresh, hidden refresh, RAS-only refresh capability
· Packages
42-pin 400mil plastic SOJ (SOJ42-P-400-1.27) (Product : MSM5118165F-xxJS)
50/44-pin 400mil plastic TSOP (TSOPII50/44-P-400-0.80-K) (Product : MSM5118165F-xxTS-K)
· Single 5V power supply, ±10% tolerance
· Input : TTL compatible, low input capacitance
· Output : TTL compatible, 3-state
· Refresh : 1024 cycles/16ms
· Fast page mode with EDO, read modify write capability
· CAS before RAS refresh, hidden refresh, RAS-only refresh capability
· Packages
42-pin 400mil plastic SOJ (SOJ42-P-400-1.27) (Product : MSM5118165F-xxJS)
50/44-pin 400mil plastic TSOP (TSOPII50/44-P-400-0.80-K) (Product : MSM5118165F-xxTS-K)

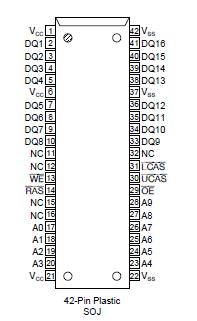

MSM5118165F Connection Diagram
MSM5118165F
