General Description
MSM514400EL General Description
The MSM514400E/EL is a 1,048,576-word * 4-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology. The MSM514400E/EL achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/double-layer metal CMOS process. The MSM514400E/EL is available in a 26/20-pin plastic SOJ, 26/20-pin plastic TSOP. The MSM514400EL (the low-power version) is specially designed for lower-power applications.
MSM514400EL Maximum Ratings
| Parameter | Symbol |
Rating |
Unit |
| Voltage on Any Pin Relative to VSS | VIN,VOUT |
− 0.5 to Vcc + 0.5 |
V |
| Voltage on VSS Supply Relative to VSS | VCC |
− 0.5 to 7.0 |
V |
| Short Circuit Output Current | IOS |
50 |
mA |
| Power Dissipation | PD* |
1 |
W |
| Operating Temperature | Topr |
0 to 70 |
|
| Storage Temperature | Tstg |
− 55 to 150 |
MSM514400EL Features
• 1,048,576-word × 4-bit configuration
• Single 5V power supply, ± 10% tolerance
• Input : TTL compatible, low input capacitance
• Output : TTL compatible, 3-state
• Refresh : 1024 cycles/16 ms, 1024 cycles/128 ms (L-version)
• Fast page mode, read modify write capability
• CAS before RAS refresh, hidden refresh, RAS-only refresh capability
• Multi-bit test mode capability
• Package options:
26/20-pin 300mil plastic SOJ (SOJ26/20-P-300-1.27) (Product : MSM514400E/EL-xxSJ)
26/20-pin 300mil plastic TSOP (TSOPII26/20-P-300-1.27-K) (Product : MSM514400E/EL-xxTS-K)
xx indicates speed rank.
• Single 5V power supply, ± 10% tolerance
• Input : TTL compatible, low input capacitance
• Output : TTL compatible, 3-state
• Refresh : 1024 cycles/16 ms, 1024 cycles/128 ms (L-version)
• Fast page mode, read modify write capability
• CAS before RAS refresh, hidden refresh, RAS-only refresh capability
• Multi-bit test mode capability
• Package options:
26/20-pin 300mil plastic SOJ (SOJ26/20-P-300-1.27) (Product : MSM514400E/EL-xxSJ)
26/20-pin 300mil plastic TSOP (TSOPII26/20-P-300-1.27-K) (Product : MSM514400E/EL-xxTS-K)
xx indicates speed rank.

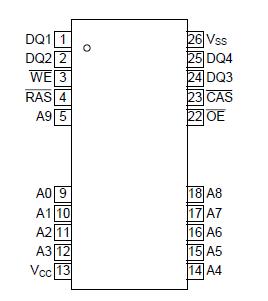

MSM514400EL Connection Diagram
MSM514400EL-60SJ
