Part Number: MSM51V18165F
Description: The MSM51V18165F is a 1,048,576-word *16-bit dynamic RAM fabricated in Oki's...
- Table of contents:
MSM51V18165F
-
Suppliers
DataSheet
General Description
MSM51V18165F General Description
The MSM51V18165F is a 1,048,576-word *16-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology. The MSM51V18165F achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/double-layer metal CMOS process. The MSM51V18165F is available in a 42-pin plastic SOJ or 50/44-pin plastic TSOP.
MSM51V18165F Maximum Ratings
| Parameter | Symbol | Rating | Unit |
| Voltage on Any Pin Relative to VSS | VIN, VOUT | - 0.5 to VCC + 0.3 | V |
| Voltage VCC Supply relative to VSS | VCC | - 0.5 to 4.6 | V |
| Short Circuit Output Current | IOS | 50 | mA |
| Power Dissipation | PD* | 1 | W |
| Operating Temperature | Topr | 0 to 70 | °C |
| Storage Temperature | Tstg | 55 to 150 | °C |
MSM51V18165F Features
· 1,048,576-word×16-bit configuration
· Single 3.3V power supply, ±0.3V tolerance
· Input : LVTTL compatible, low input capacitance
· Output : LVTTL compatible, 3-state
· Refresh : 1024 cycles/16ms
· Fast page mode with EDO, read modify write capability
· CAS before RAS refresh, hidden refresh, RAS-only refresh capability
· CAS before RAS self-refresh capability
· Package options:
42-pin 400mil plastic SOJ (SOJ42-P-400-1.27) (Product : MSM51V18165F-xxJS)
50/44-pin 400mil plastic TSOP (TSOPII50/44-P-400-0.80-K) (Product : MSM51V18165F-xxTS-K)
(TSOPII50/44-P-400-0.80-L) (Product : MSM51V18165F-xxTS-L)
· Single 3.3V power supply, ±0.3V tolerance
· Input : LVTTL compatible, low input capacitance
· Output : LVTTL compatible, 3-state
· Refresh : 1024 cycles/16ms
· Fast page mode with EDO, read modify write capability
· CAS before RAS refresh, hidden refresh, RAS-only refresh capability
· CAS before RAS self-refresh capability
· Package options:
42-pin 400mil plastic SOJ (SOJ42-P-400-1.27) (Product : MSM51V18165F-xxJS)
50/44-pin 400mil plastic TSOP (TSOPII50/44-P-400-0.80-K) (Product : MSM51V18165F-xxTS-K)
(TSOPII50/44-P-400-0.80-L) (Product : MSM51V18165F-xxTS-L)

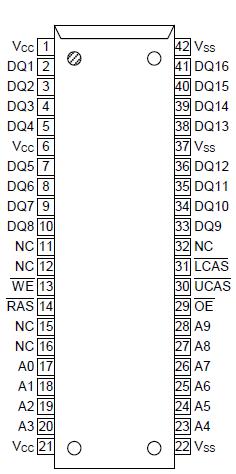

MSM51V18165F Connection Diagram
MSM51V18165F
