Part Number: MSM51X17400F
Description: The MSM51X17400F is a 4,194,304-word * 4-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technol...
- Table of contents:
MSM51X17400F
-
Suppliers
DataSheet
General Description
MSM51X17400F General Description
The MSM51X17400F is a 4,194,304-word * 4-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology. The MSM51X17400F achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/double-layer metal CMOS process. The MSM51X17400F is available in a 26/24-pin plastic TSOP.
MSM51X17400F Maximum Ratings
| Parameter | Symbol | Value | Unit |
| Voltage on Any Pin Relative to VSS | VIN, VOUT | 0.5 to VCC+ 0.5 | V |
| Voltage VCC Supply relative to VSS | VCC | 0.5 to 3.0 | V |
| Short Circuit Output Current | IOS | 50 | mA |
| Power Dissipation | PD* | 1 | W |
| Operating Temperature | Topr | 10 to 70 | |
| Storage Temperature | Tstg | 55 to 150 |
MSM51X17400F Features
· 4,194,304-word × 4-bit configuration
· Single 2.0V power supply, ±0.15V tolerance
· Input : CMOS Interface, low input capacitance
· Output : CMOS Interface, 3-state
· Refresh : 2048 cycles/32ms
· Fast page mode, read modify write capability
· CAS before RAS refresh capability
· Packages 26/24-pin 300mil plastic TSOP (TSOPII26/24-P-300-1.27-K) (Product : MSM51X17400F-xxTS-K)
· Single 2.0V power supply, ±0.15V tolerance
· Input : CMOS Interface, low input capacitance
· Output : CMOS Interface, 3-state
· Refresh : 2048 cycles/32ms
· Fast page mode, read modify write capability
· CAS before RAS refresh capability
· Packages 26/24-pin 300mil plastic TSOP (TSOPII26/24-P-300-1.27-K) (Product : MSM51X17400F-xxTS-K)

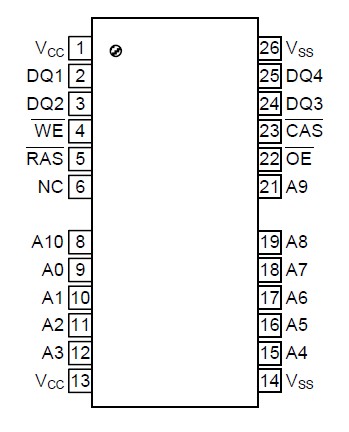

MSM51X17400F Connection Diagram
MSM51X17400F-10
PDF/DataSheet Download
- Datasheet: MSM51X17400F-10
- File Size: 160366 KB
- Manufacturer: OKI [OKI electronic componets]
- Click here to Download
