Purchase MSM5218, In-stock MSM5218 From SeekIC.
Part Number: MSM5218
Description: The MSM5218 is a complete voice analysis/synthesis IC featuring the Adaptive Differential Pulse Code M...
- Table of contents:
MSM5218
-
Suppliers
DataSheet
General Description
MSM5218 General Description
The MSM5218 is a complete voice analysis/synthesis IC featuring the Adaptive Differential Pulse Code Modulation (ADPCM) method of data compression. The MSM5218 contains an analysis stage where serial PCM data is compressed to 3- or 4-bit parallel ADPCM data. In addition, a synthesis stage synthesizes PCM data from ADPCM data.
MSM5218 Maximum Ratings
| Parameter | Symbol | Condition | Rating | Unit |
| Power Supply Voltage | VDD | Ta = 25°C | 3.0 to +7.0 | V |
| Input Voltage | VIN | Ta = 25°C | 3.0 to VDD | V |
| Power Dissipation | PD | Ta = 25°C | 200 max | mW |
| Storage Temperature | TSTG | - | 55 ~ +150 | °C |
MSM5218 Features
• ADPCM data compatible with OKI's synthesis IC MSM5205
• Analysis/synthesis switching pin provided
• Lower power consumption achieved by one-chip CMOS IC
• Built-in 10-bit D/A converter for analog output
• Variable sampling frequency (4 kHz, 6 kHz, 8 kHz)
• Master clock frequency: 384 kHz
• Package: 24-pin plastic DIP (DIP24-P-600) (Product name: MSM5218RS)
• Analysis/synthesis switching pin provided
• Lower power consumption achieved by one-chip CMOS IC
• Built-in 10-bit D/A converter for analog output
• Variable sampling frequency (4 kHz, 6 kHz, 8 kHz)
• Master clock frequency: 384 kHz
• Package: 24-pin plastic DIP (DIP24-P-600) (Product name: MSM5218RS)

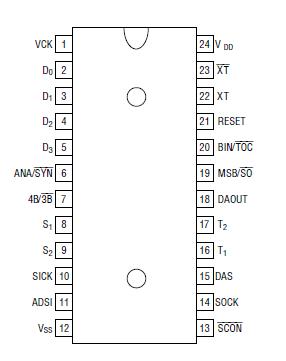

MSM5218 Connection Diagram
MSM5218
PDF/DataSheet Download
- Datasheet: MSM5218
- File Size: 252741 KB
- Manufacturer: OKI [OKI electronic componets]
- Click here to Download
