Purchase MSM5265, In-stock MSM5265 From SeekIC.
MFG:OKI Package Cooled:QFP
Part Number: MSM5265
MFG: OKI
Package Cooled: QFP
Description: The MSM5265 is an LCD driver which can directly drive up to 80 segments in the static display mode and...
- Table of contents:
MSM5265
-
Suppliers
DataSheet
General Description
MSM5265 General Description
The MSM5265 is an LCD driver which can directly drive up to 80 segments in the static display mode and up to 160 segments in the 1/2 duty dynamic display mode.
The MSM5265 is fabricated with low power CMOS metal gate technology. The MSM5265 consists of a 160-stage shift register, 160-bit data latch, 80 pairs of LCD drivers and a common signal generator.
The display data is serially input from the DATA-IN pin to the 160-stage shift register synchronized with the CLOCK pulse. The data is shifted into the 160-bit data latch by the LOAD signal. Then the latched data is directly output to the LCD from the 80 pairs of LCD drivers as a serial output.
The common signal can be generated by the built-in generator, or externally input. The common synchronization circuit which is used in the dynamic display mode is integrated on the chip.
MSM5265 Maximum Ratings
| Parameter | Symbol | Condition | Rating | Unit |
| Supply Voltage | VDD | Ta = 25°C | 0.3 to +6.5 | V |
| Input Voltage | VI | Ta = 25°C | GND0.3 to VDD +0.3 | V |
| Storage Temperature | TSTG | - | 55 to +150 | °C |
MSM5265 Features
• Supply voltage : 3.0 to 6.0 V
• Drives LCD of up to 80 segments (in the static display mode)
• Drives LCD of up to 160 segments (in the 1/2 duty dynamic display mode)
• Simple interface with microcomputer
• Bit-to-bit correspondence between input data and output data
H: Display ON L: Display OFF
• Can be cascade-connected
• Built-in common signal generator
• Can be synchronized with the external common signal
• Testing pins for all-on (SEG-TEST) and all-off (BLANK)
• Applicable as an output expander
• LCD driving voltage can be adjusted by the combination of VLC1 and VLC2
• Package options:
100-pin plastic QFP (QFP100-P-1420-0.65-K) (Product name : MSM5265GS-K)
100-pin plastic QFP (QFP100-P-1420-0.65-BK) (Product name : MSM5265GS-BK)
• Drives LCD of up to 80 segments (in the static display mode)
• Drives LCD of up to 160 segments (in the 1/2 duty dynamic display mode)
• Simple interface with microcomputer
• Bit-to-bit correspondence between input data and output data
H: Display ON L: Display OFF
• Can be cascade-connected
• Built-in common signal generator
• Can be synchronized with the external common signal
• Testing pins for all-on (SEG-TEST) and all-off (BLANK)
• Applicable as an output expander
• LCD driving voltage can be adjusted by the combination of VLC1 and VLC2
• Package options:
100-pin plastic QFP (QFP100-P-1420-0.65-K) (Product name : MSM5265GS-K)
100-pin plastic QFP (QFP100-P-1420-0.65-BK) (Product name : MSM5265GS-BK)

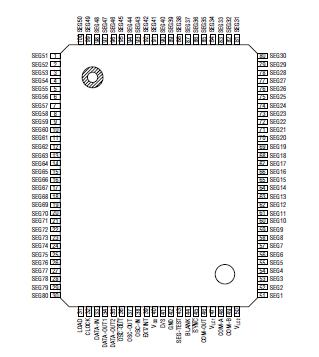

MSM5265 Connection Diagram
MSM5265
