Purchase MSM5298A, In-stock MSM5298A From SeekIC.
MFG:OKI Package Cooled:TQFP
Part Number: MSM5298A
MFG: OKI
Package Cooled: TQFP
Description: The MSM5298A is a dot matrix LCD common driver LSI which is fabricated using low power CMOS metal gate...
- Table of contents:
MSM5298A
-
Suppliers
DataSheet
General Description
MSM5298A General Description
The MSM5298A is a dot matrix LCD common driver LSI which is fabricated using low power CMOS metal gate technology. This LSI consists of 68-bit bidirectional shift register, 68-bit level shifter and 68-bit 4-level driver.
This LSI has 68 output pins to be connected to the LCD. By connecting two or more MSM5298As in series, this LSI is applicable to a wide LCD panel.
MSM5298A Maximum Ratings
| Parameter | Symbol | Condition | Rating | Unit |
| Supply Voltage (1) | VDD | Ta = 25°C | 0.3 to +6 | V |
| Supply Voltage (2) | VLCD | Ta = 25°C, VDDVEE *1 | 0 to +30 | V |
| Input Voltage | VI | Ta = 25°C | 0.3 to VDD +0.3 | V |
| Storage Temperature | TSTG | - | 55 to +150 | °C |
MSM5298A Features
• Supply voltage : 4.5 to 5.5V
• LCD driving voltage : 8 to 28V
• Applicable LCD duty : 1/64 to 1/256
• Applicable segment driver : MSM5299A (80 outputs), MSM5299C (80 outputs)
• Package options:
80-pin plastic QFP (QFP80-P-1420-0.80-K) (Product name : MSM5298AGS-K)
80-pin plastic QFP (QFP80-P-1420-0.80-BK) (Product name : MSM5298AGS-BK)
• LCD driving voltage : 8 to 28V
• Applicable LCD duty : 1/64 to 1/256
• Applicable segment driver : MSM5299A (80 outputs), MSM5299C (80 outputs)
• Package options:
80-pin plastic QFP (QFP80-P-1420-0.80-K) (Product name : MSM5298AGS-K)
80-pin plastic QFP (QFP80-P-1420-0.80-BK) (Product name : MSM5298AGS-BK)

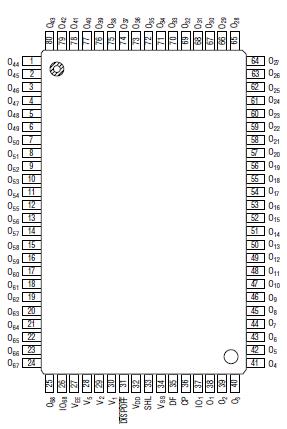

MSM5298A Connection Diagram
MSM5298A
