MSM5299A General Description


The MSM5299A is a dot matrix LCD segment driver LSI which is fabricated using CMOS low power metal gate technology.  This LSI consists of an 80-bit bidirectional shift register, 80-bit latch, 80-bit level shifter and 80-bit 4-level driver. It receives the display data, which is transferred in 4-bit parallel from a microcomputer or LCD controller LSI such as MSM6255, then outputs the LCD driving waveform to the LCD.

MSM5299A Maximum Ratings

Parameter
Symbol
Condition
Rating
Unit
Supply Voltage (1)
VDD
Ta = 25°C
0.3 to +6
V
Supply Voltage (2)
VLCD
Ta = 25°C, VDD VEE*1
0 to 30
V
Input Voltage
VI
Ta = 25°C
0.3 to VDD+0.3
V
Storage Temperature
TSTG
-
55 to +150
°C

MSM5299A Features

• Supply voltage : 4.5 to 5.5V
• LCD driving voltage : 8 to 28V
• Applicable LCD duty : 1/64 to 1/256
• LCD Output : 80
• The 4-bit parallel data processing has improved the transfer speed to 1/4 that of the conventional serial transfer, thereby achieving low power consumption
• Can be interfaced with the LCD controller LSI MSM6255
• Applicable common diriver : MSM5298A (68 outputs)
• Package options:
100-pin plastic QFP (QFP100-P-1420-0.65-K)  (Product name : MSM5299AGS-K)
100-pin plastic QFP (QFP100-P-1420-0.65-BK)  (Product name : MSM5299AGS-BK)

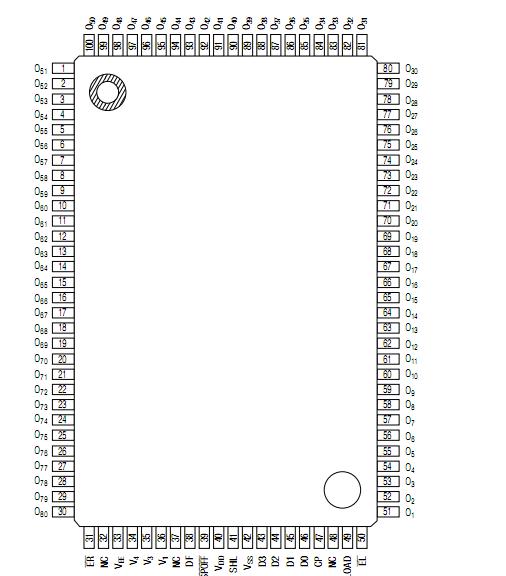

MSM5299A Connection Diagram
