Purchase MSM5432126, In-stock MSM5432126 From SeekIC.
MFG:11000 Package Cooled:OKI
Part Number: MSM5432126
MFG: 11000
Package Cooled: OKI
Description: The MSM5432126/8 is a new generation Graphics DRAM organized in a 131,072-word ×
- Table of contents:
MSM5432126
-
Suppliers
DataSheet
General Description
MSM5432126 General Description
The MSM5432126/8 is a new generation Graphics DRAM organized in a 131,072-word ×32-bit configuration. The technology used to fabricate the MSM5432126/8 is OKI's CMOS silicon gate process technology. The device operates with a single 5 V power supply.
MSM5432126 Maximum Ratings
|
Parameter |
Symbol |
Rating |
Unit |
| Voltage on Any Pin Relative to VSS |
VT |
0.5 to 7.0 |
V |
| Short Circuit Output Current |
IOS |
50 |
mA |
| Power Dissipation |
PD |
1 |
W |
| Operating Temperature |
Topr |
0 to 70 |
°C |
| Storage Temperature |
Tstg |
55 to 150 |
°C |
MSM5432126 Features
• 131,072-word ×32-bit organization
• Single 5 V power supply, ±10% tolerance
• Refresh: 512 cycles/8 ms
• Fast Page Mode with Extended Data Out (EDO)
• Write per bit (MSM5432128 only)
• Byte write, Byte read
• RAS only refresh
• CAS before RAS refresh
• Hidden refresh
• Package:
64-pin 525 mil plastic SSOP (SSOP64-P-525-0.80-K) (Product : MSM5432126-xxGS-K)
(Product : MSM5432128-xxGS-K)
xx indicates speed rank.
• Single 5 V power supply, ±10% tolerance
• Refresh: 512 cycles/8 ms
• Fast Page Mode with Extended Data Out (EDO)
• Write per bit (MSM5432128 only)
• Byte write, Byte read
• RAS only refresh
• CAS before RAS refresh
• Hidden refresh
• Package:
64-pin 525 mil plastic SSOP (SSOP64-P-525-0.80-K) (Product : MSM5432126-xxGS-K)
(Product : MSM5432128-xxGS-K)
xx indicates speed rank.

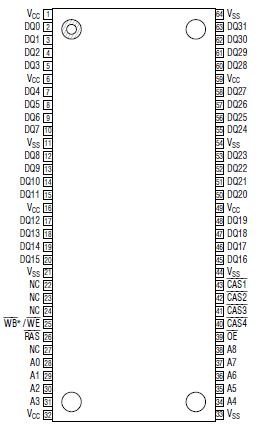

MSM5432126 Connection Diagram
MSM5432126
