General Description
MSM54V24616 General Description
The MSM54V24616 is a 131,072-word × 16-bit × 2-bank synchronous dynamic RAM, fabricated in OKI's CMOS silicon gate process technology. The device operates at 3.3 V. The inputs and outputs are LVTTL compatible. This device can operate up to 125MHz by using synchronous interface.
MSM54V24616 Maximum Ratings
|
Parameter |
Symbol |
Rating |
Unit |
| Voltage on Any Pin Relative to VSS |
VIN,VOUT |
0.5 to 4.6 |
V |
| VCC Supply Voltage |
VCC,VCCQ |
0.5 to 4.6 |
V |
| Power Dissipation |
PD* |
1 |
W |
| Short Circuit Current |
IOS |
50 |
mA |
| Operating Temperature |
Topr |
0 to 70 |
°C |
| Storage Temperature |
Tstg |
55 to 150 |
°C |
MSM54V24616 Features
• 131,072-words × 16-bit × 2 banks configuration
• Single 3.3 V±10% power supply
• LVTTL compatible inputs and outputs
• All input signals are latched at rising edge of system clock
• Auto precharge and controlled precharge
• Internal pipelined operation: column address can be changed every clock cycle
• Dual internal banks controlled by A9 (Bank Address: BA)
• Independent byte operation via DQML and DQMU
• Programmable burst sequence (Sequential / Interleave)
• Programmable burst length (1, 2, 4, 8 and full page)
• Programmable CAS latency (1, 2 and 3)
• Programmable Write burst (Burst write / Single write)
• Burst stop function (full-page burst)
• Power Down operation and Active Power Down (Clock Suspend) operation
• Auto refresh and Self refresh capability
• Refresh period: 1,024 cycles / 16 ms
• Package options:
50-pin plastic TSOP (type II) (TSOPII50-P-400-0.80-K) (Product : MSM54V24616-xxTS-K)
xx indicates speed rank.
• Single 3.3 V±10% power supply
• LVTTL compatible inputs and outputs
• All input signals are latched at rising edge of system clock
• Auto precharge and controlled precharge
• Internal pipelined operation: column address can be changed every clock cycle
• Dual internal banks controlled by A9 (Bank Address: BA)
• Independent byte operation via DQML and DQMU
• Programmable burst sequence (Sequential / Interleave)
• Programmable burst length (1, 2, 4, 8 and full page)
• Programmable CAS latency (1, 2 and 3)
• Programmable Write burst (Burst write / Single write)
• Burst stop function (full-page burst)
• Power Down operation and Active Power Down (Clock Suspend) operation
• Auto refresh and Self refresh capability
• Refresh period: 1,024 cycles / 16 ms
• Package options:
50-pin plastic TSOP (type II) (TSOPII50-P-400-0.80-K) (Product : MSM54V24616-xxTS-K)
xx indicates speed rank.

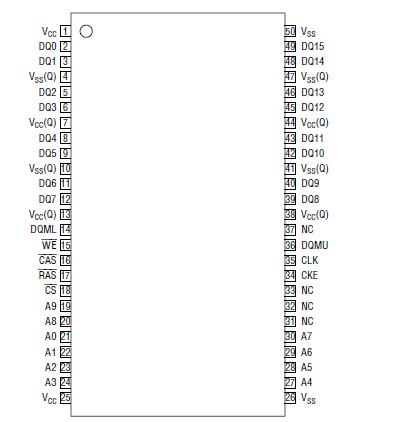

MSM54V24616 Connection Diagram
MSM54V24616
PDF/DataSheet Download
- Datasheet: MSM54V24616
- File Size: 535784 KB
- Manufacturer: OKI
- Click here to Download
