Part Number: MSM54V32126
Description: The MSM54V32126/8 is a new generation Graphics DRAM organized in a 131,072-word ¥ 32-bit configura...
- Table of contents:
MSM54V32126
-
Suppliers
DataSheet
General Description
MSM54V32126 General Description
The MSM54V32126/8 is a new generation Graphics DRAM organized in a 131,072-word ¥ 32-bit configuration. The technology used to fabricate the MSM54V32126/8 is OKI's CMOS silicon gate process technology. The device operates with a single 3.3 V power supply.
MSM54V32126 Maximum Ratings
|
Parameter |
Symbol |
Rating |
Unit |
|
Voltage on Any Pin Relative to VSS |
VT |
0.5 to 4.5 |
V |
|
Short Circuit Output Current |
IOS |
50 |
mA |
|
Power Dissipation |
PD |
1 |
W |
|
Operating Temperature |
Topr |
0 to 70 |
°C |
|
Storage Temperature |
Tstg |
55 to 150 |
°C |
MSM54V32126 Features
• 131,072-word ¥ 32-bit organization
• Single 3.3 V power supply, ±0.3 V tolerance
• Refresh: 512 cycles/8 ms
• Fast Page Mode with Extended Data Out (EDO)
•Write per bit (MSM54V32128 only)
• Byte write, Byte read
• RAS only refresh
• CASbefore RAS refresh
• CAS before RAS self-refresh
• Hidden refresh
• Package:
64-pin 525 mil plastic SSOP (SSOP64-P-525-0.80-K) (Product : MSM54V32126-xxGS-K)
(Product : MSM54V32128-xxGS-K)
xx indicates speed rank.
• Single 3.3 V power supply, ±0.3 V tolerance
• Refresh: 512 cycles/8 ms
• Fast Page Mode with Extended Data Out (EDO)
•Write per bit (MSM54V32128 only)
• Byte write, Byte read
• RAS only refresh
• CASbefore RAS refresh
• CAS before RAS self-refresh
• Hidden refresh
• Package:
64-pin 525 mil plastic SSOP (SSOP64-P-525-0.80-K) (Product : MSM54V32126-xxGS-K)
(Product : MSM54V32128-xxGS-K)
xx indicates speed rank.

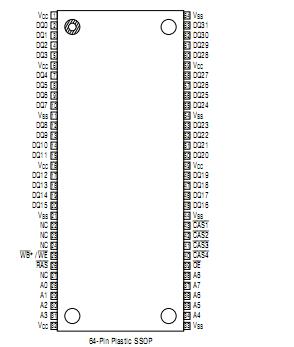

MSM54V32126 Connection Diagram
MSM54V32126
