Part Number: MSM54V32126A
Description: The MSM54V32126A is a Graphics DRAM organized in a 131,072-word × 32-bit con...
- Table of contents:
MSM54V32126A
-
Suppliers
DataSheet
General Description
MSM54V32126A General Description
The MSM54V32126A is a Graphics DRAM organized in a 131,072-word × 32-bit configuration. The technology used to fabricate the MSM54V32126A is OKI's CMOS silicon gate process technology.The device operates with a single 3.3 V power supply.
MSM54V32126A Maximum Ratings
|
Parameter |
Symbol |
Rating |
Unit |
| Voltage on Any Pin Relative to VSS |
VT |
0.5 to 4.5 |
V |
| Short Circuit Output Current |
IOS |
50 |
mA |
| Power Dissipation |
PD |
1 |
W |
| Operating Temperature |
Topr |
0 to 70 |
°C |
| Storage Temperature |
Tstg |
55 to 150 |
°C |
MSM54V32126A Features
• 131,072-word ×32-bit organization
• Single 3.3 V power supply, ±0.3 V tolerance
• Refresh: 512 cycles/8 ms
• Fast Page Mode with Extended Data Out (EDO)
• Byte write, Byte read
• RAS only refresh
• CAS before RAS refresh
• CAS before RAS self-refresh
• Hidden refresh
• Package options:
64-pin 525 mil plastic SSOP (SSOP64-P-525-0.80-K) (Product : MSM54V32126A-xxGS-K)
70/64-pin 400 mil plastic TSOP (Type II)(TSOPII70/64-P-400-0.65-K)(Product : MSM54V32126A-xxTS-K)
xx indicates speed rank.
• Single 3.3 V power supply, ±0.3 V tolerance
• Refresh: 512 cycles/8 ms
• Fast Page Mode with Extended Data Out (EDO)
• Byte write, Byte read
• RAS only refresh
• CAS before RAS refresh
• CAS before RAS self-refresh
• Hidden refresh
• Package options:
64-pin 525 mil plastic SSOP (SSOP64-P-525-0.80-K) (Product : MSM54V32126A-xxGS-K)
70/64-pin 400 mil plastic TSOP (Type II)(TSOPII70/64-P-400-0.65-K)(Product : MSM54V32126A-xxTS-K)
xx indicates speed rank.

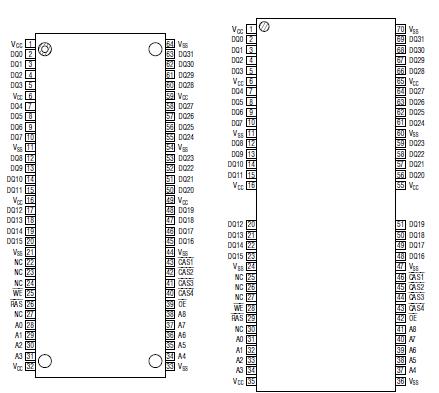

MSM54V32126A Connection Diagram
MSM54V32126A
