General Description
MSM56V16800D General Description
The MSM56V16800D/DH is a 2-bank ×1,048,576-word ×8-bit synchronous dynamic RAM,fabricated in Oki's CMOS silicon-gate process technology. The device operates at 3.3 V. The inputs and outputs are LVTTL compatible.
MSM56V16800D Maximum Ratings
|
Parameter |
Symbol |
Rating |
Unit |
| Voltage on Any Pin Relative to VSS |
VIN, VOUT |
-0.5 to VCC +0.5 |
V |
| VCC Supply Voltage |
VCC, VCCQ |
-0.5 to 4.6 |
V |
| Storage Temperature |
Tstg |
-55 to 150 |
°C |
| Power Dissipation |
PD* |
600 |
mW |
| Short Circuit Current |
IOS |
50 |
mA |
| Operating Temperature |
Topr |
0 to 70 |
°C |
*: Ta = 25°C
MSM56V16800D Features
•Silicon gate, quadruple polysilicon CMOS, 1-transistor memory cell
•2-bank * 1,048,576-word * 8-bit configuration
•3.3 V power supply, ±0.3 V tolerance
•Input: LVTTL compatible
•Output: LVTTL compatible
•Refresh: 4096 cycles/64 ms
•Programmable data transfer mode
CAS atency (1, 2, 3)
CAS latency (2, 3)*1
Burst length (1, 2, 4, 8, full page)
Burst length (1, 2, 4, 8)*1
Data scramble (sequential, interleave)*1
1: H version only.
•CBR auto-refresh, Self-refresh capability
•Package:
44-pin 400 mil plastic TSOP (Type II)(TSOPII44-P-400-0.80-K) (Product : MSM56V16800D/DH-xxTS-K)
xx indicates speed rank.
•2-bank * 1,048,576-word * 8-bit configuration
•3.3 V power supply, ±0.3 V tolerance
•Input: LVTTL compatible
•Output: LVTTL compatible
•Refresh: 4096 cycles/64 ms
•Programmable data transfer mode
CAS atency (1, 2, 3)
CAS latency (2, 3)*1
Burst length (1, 2, 4, 8, full page)
Burst length (1, 2, 4, 8)*1
Data scramble (sequential, interleave)*1
1: H version only.
•CBR auto-refresh, Self-refresh capability
•Package:
44-pin 400 mil plastic TSOP (Type II)(TSOPII44-P-400-0.80-K) (Product : MSM56V16800D/DH-xxTS-K)
xx indicates speed rank.

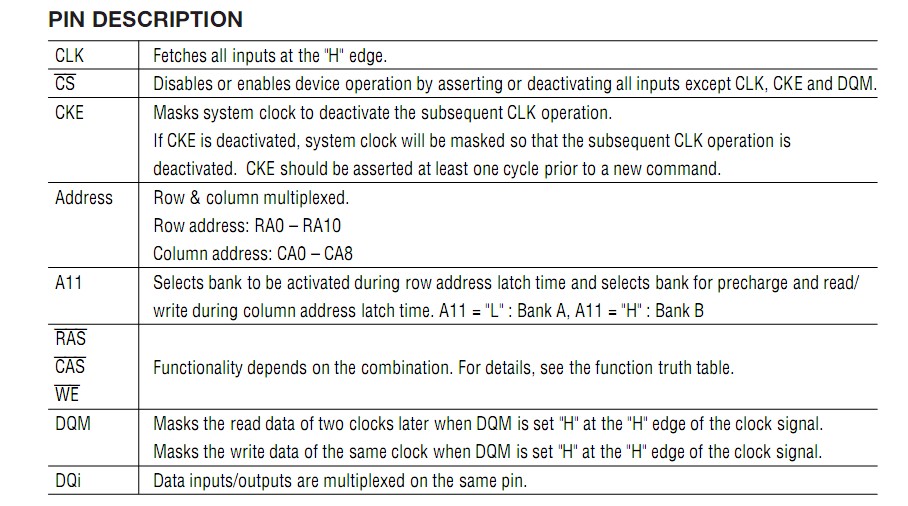

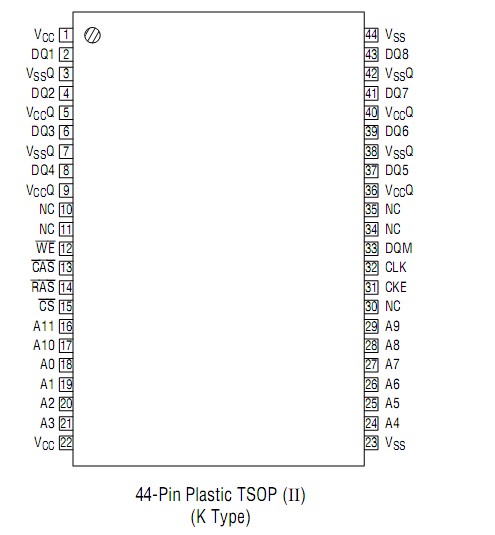

MSM56V16800D Connection Diagram
MSM56V16800D
PDF/DataSheet Download
- Datasheet: MSM56V16800D
- File Size: 348325 KB
- Manufacturer: OKI [OKI electronic componets]
- Click here to Download
