Description: The MSM 58321 is a metal gate CMOS Real Time Clock/Calendar with a battery backup function for use in ...
- Table of contents:
MSM58321
-
Suppliers
DataSheet
General Description
MSM58321 General Description
The MSM 58321 is a metal gate CMOS Real Time Clock/Calendar with a battery backup function for use in bus-oriented microprocessor applications.
The 4-bit bidirectional bus line method is used for the data I/O circuit; the clock is set, corrected,or read by accessing the memory.
The time is read with 4-bit DATA I/O, ADDRESS WRITE, READ, and BUSY; it is written with 4-bit DATA I/O, ADDRESS WRITE,WRITE, and BUSY.
MSM58321 Maximum Ratings
|
Rating |
Symbol |
Condition |
Value |
Unit |
| Power voltage |
VDD |
Ta = 25°C |
0.3 to 6.5 |
V |
| Input voltage |
VI |
Ta = 25°C |
0.3 to VDD+0.3 |
V |
| Output voltage |
VO |
Ta = 25°C |
0.3 to VDD+0.3 |
V |
| Storage temperature |
Tstg |
- |
55 to +150 |
°C |
MSM58321 Features
• 7 Function-Second, Minute, Hour, Day,Day-of-Week, Month, Year
• Automatic leap year calender
• 12/24 hour format
• Frequency divider 5-poststage reset
• Reference signal output
• 32.768 kHz crystal controlled operation
• Single 5V power supply
• Back-up battery operation to VDD = 2.2V
• Low power dissipation
90 W max. at VDD = 3V
2.5 mW max. at VDD = 5V
• 16 pin plastic DIP (DIP 16-P-300)
• Automatic leap year calender
• 12/24 hour format
• Frequency divider 5-poststage reset
• Reference signal output
• 32.768 kHz crystal controlled operation
• Single 5V power supply
• Back-up battery operation to VDD = 2.2V
• Low power dissipation
90 W max. at VDD = 3V
2.5 mW max. at VDD = 5V
• 16 pin plastic DIP (DIP 16-P-300)

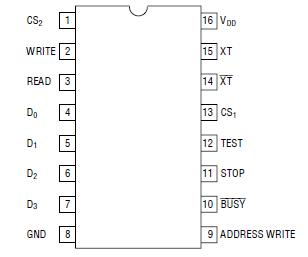

MSM58321 Connection Diagram
MSM58321
