Five Points

Part Number: MSM6255

MFG: QUALCOMM

Package Cooled: 05+

D/C: BGA

Description: The MSM6255 is a CMOS si-gate LSI designed to display characters and graphics on a DOT MATRIX LCD panel.

MSM6255 General Description

The MSM6255 is a CMOS si-gate LSI designed to display characters and graphics on a DOT MATRIX LCD panel.

MSM6255 Maximum Ratings

Rating	Symbol	Condition	Value	Unit
Supply Voltage	V_DD	Ta = 25°C	-0.3 to 6	V
Input Voltage	V_I	Ta = 25°C	0.3 to V_DD	V
Storage temperature	T_STG	-	55 to +150	°C

MSM6255 Features

• Display control capacity
   Graphic mode : 512,000 dots (216 bytes)
                                Memory address MA0 to MA15
   Character mode : 65,536 characters (216 bytes)
                                   Display address MA0 to MA15
• Direct interface with 8085 or Z80 CPU
• Duty : 1/2 to 1/256 selectable
• Attributes
   Screen clear
    Cursor ON/OFF/blink
• Scrolling and paging
• Display system : AC inversion at each frame
• Data output (upper and lower display outputs)
   4-bit parallel output, 2-bit parallel output, 1-bit serial output
• Crystal oscillation/external clock selectable
• Single +5V power supply
• Package options:
   80-pin plastic QFP (QFP80-P-1420-0.80-K) (Product name: MSM6255GS-K)
   80-pin plastic QFP (QFP80-P-1420-0.80-BK) (Product name: MSM6255GS-BK)

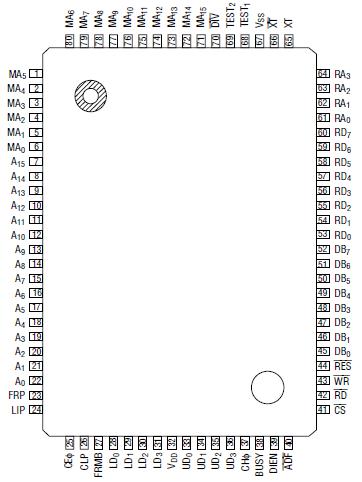

MSM6255 Connection Diagram

MSM6255 datasheet
