MSM7702-02

Features: • Single power supply: +2.7 V to +3.8 V• Low power consumption Operating mode: 15 mW Typ. VDD = 3 V Power save mode: 3.6 mW Typ. VDD = 3 V Power down mode: 0.05 mW Typ. VDD = 3 V• ITU-T Companding law MSM7702-01: m/A-law pin selectable MSM7702-02: m-law MSM7702-03: A-la...

product image

MSM7702-02 Picture
See larger image
SeekIC No. : 004429133 Detail

MSM7702-02: Features: • Single power supply: +2.7 V to +3.8 V• Low power consumption Operating mode: 15 mW Typ. VDD = 3 V Power save mode: 3.6 mW Typ. VDD = 3 V Power down mode: 0.05 mW Typ. VDD = 3...

MSM7702-02 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM7702-02
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single power supply: +2.7 V to +3.8 V
• Low power consumption
   Operating mode: 15 mW Typ. VDD = 3 V
   Power save mode: 3.6 mW Typ. VDD = 3 V
   Power down mode: 0.05 mW Typ. VDD = 3 V
• ITU-T Companding law
   MSM7702-01: m/A-law pin selectable
   MSM7702-02: m-law
   MSM7702-03: A-law
• Built-in PLL eliminates a master clock
• Serial data rate: 64/128/256/512/1024/2048 kHz
                            96/192/384/768/1536/1544/200 kHz
• Adjustable transmit gain
• Built-in reference voltage supply
• Analog output can directly drive a load equivalent to 1.2 k
• Pin-for-pin compatible with the MSM7578 and MSM7579
• Package options:
   24-pin plastic SOP (SOP24-P-430-1.27-K) (Product name : MSM7702-01GS-K)
                                                                    (Product name : MSM7702-02GS-K)
                                                                     (Product name : MSM7702-03GS-K)
  20-pin plastic SSOP (SSOP20-P-250-0.95-K) (Product name : MSM7702-01MS-K)
                                                                        (Product name : MSM7702-02MS-K)
                                                                        (Product name : MSM7702-03MS-K)


Pinout

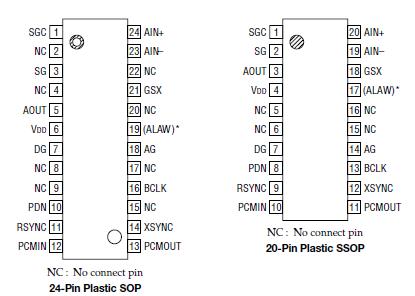

Connection Diagram


Specifications

Parameter
Symbol
Condition
Rating
Unit
Power Supply Voltage
VDD
-
0.3 to 7
V
Analog Input Voltage
VAIN
0.3 to VDD + 0.3
Digital Input Voltage
VDIN
0.3 to VDD + 0.3
Storage Temperature
TSTG
55 to 150
°C



Description

The MSM7702-02 is a single-channel CODEC CMOS IC for voice signals ranging from 300 to 3400 Hz with filters for A/D and D/A conversion.

Designed especially for a single-power supply and low-power applications, the device is optimized for telephone terminals in digital wireless systems or ISDN systems.The MSM7702-02 utilizes low-voltage operational amplifiers (Op-amps) to provide low-power consumption.

The MSM7702-02 uses the same transmission clocks as those used in the MSM7508B and MSM7509B.The analog output signal can directly drive a piezoelectric type handset receiver.
