MFG:OKI Package Cooled:QFP
MFG: OKI
Package Cooled: QFP
Description: The MSM7731 is an IC device developed for portable, handsfree communication with built-in line echo ca...
The MSM7731 is an IC device developed for portable, handsfree communication with built-in line echo canceler,acoustic echo canceler, and transmission signal noise canceler. Built-in to the voice signal interface is a linear
CODEC for the analog interface on the acoustic-side, and a linear CODEC for the analog interface on the line-side. On the line-side, in addition to the analog interface, there is also a -law PCM/16-bit linear digital interface. Equipped with gain and mute controls for data transmission and reception, a -law PCM/16-bit linear digital interface for memo recording and message output, and transfer clock and sync clock generators for digital communication, this device is ideally suited for a handsfree system.
• Single 3 V Power Supply Operation (2.7 to 3.6 V)
• Built-in 2-channel (line and acoustic) echo canceler
Echo attenuation : 35 dB (typ.) for white noise
Cancelable echo delay time :
Line echo canceler + acoustic echo canceler : Tlined = 27 ms (max.)
Tacoud = 59 ms Tlined (max.)
Acoustic echo canceler only : Tacoud = 59 ms (max.)
• Built-in transmission signal noise canceler Noise attenuation : 17 dB (typ.) for white noise 40 dB (typ.) for single tone
• Built-in 2-channel CODEC Synchronous transmission and reception enables full duplex operation
• Built-in analog input gain amp stage (max. gain = 30 dB)
• Analog output configuration : Push-pull drive (can drive a 1.2 k load)
• Built-in transmit slope filter
• Digital interface coding formats : -law PCM, 16-bit linear (2's complement)
• Digital interface sync formats : Normal-sync, short-frame-sync
• Built-in digital transmission clock generators
Sync clock (SYNC) : 8 kHz output
Transmission clock (BCLK) : 64 kHz output (-law PCM)/128 kHz output (16-bit linear)
• Digital transmission rate
External input : 64 to 2048 kbps
Internal generation : 64 kbps (-law PCM)/128 kbps (16-bit linear)
• Fixed digital interface sync clock (SYNC) enables automatic power-down
• Master clock frequency : 19.2 MHz Compatible with crystal oscillator and crystal
• Low power consumption
Operating mode : typ. 35 mA (when VDD = 3.0 V in a silent mode)
Power down operation : typ. 0.02 mA (when VDD = 3.0 V in a silent mode)
• Control by both the serial microcomputer interface and parallel port is possible
• Transmit/receive mute function, transmit/receive programmable gain setting

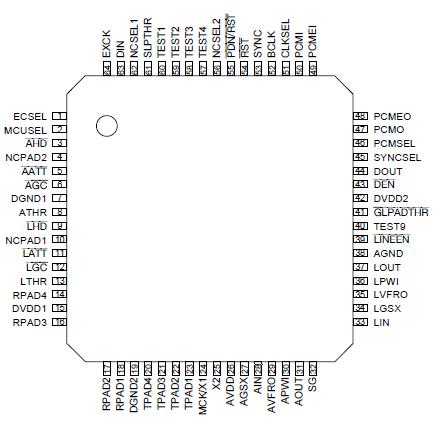

• Package : 64-pin plastic QFP (QFP64-P-1414-0.80-BK)(Product name: MSM7731-02GA)
MSM7731-02
PDF/DataSheet Download
